Vehicle Exploded View - APRILIA RS 125 4T E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

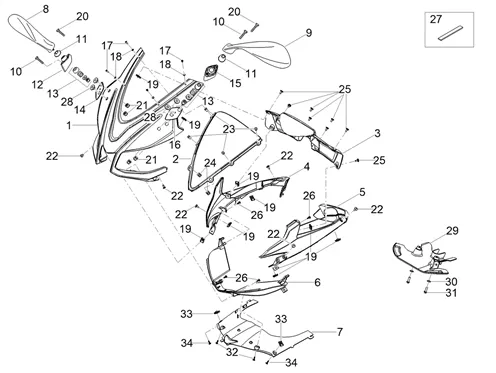

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1004/RS_125_4T_E5_ABS_2021_(EMEA)_02.04.png)
1 |
2B008204 FRONT FAIRING More informationQuantity required : 1 |
||||||
|
1 |
FRONT PANEL FRONT DE FAIRING WHITE OEM APRILIA RS 125 4T E5 2021 >-2B008204000XBC More informationQuantity required : 1 |
||||||
|
1 |
2B008204000XR4 FRONT FAIRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/7/9/img/42379.jpg)
2 |
BULLE/VITRE DE FRONT PANEL FRONT OEM PIAGGIO APRILIA 50-125 RS4 2011 >, 1000 RSV-4 2009 > 2015-895869 More informationQuantity required : 1 |
||||||
|
3 |
2B008210 DASHBOARD COVER More informationQuantity required : 1 |
||||||
|
4 |
2B008208 UPPER RH FAIRING More informationQuantity required : 1 |
||||||
|
5 |
2B008206 UPPER LH FAIRING More informationQuantity required : 1 |
||||||
|
6 |
2B008205 SHIELD More informationQuantity required : 1 |
||||||
|
7 |
2B008209 FRONT LOWER PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/7/6/img/39476.jpg)
8 |
RIGHT MIRROR OEM PIAGGIO APRILIA 50 RS4 2011 >-852151 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/7/7/img/39477.jpg)
9 |
LEFT MIRROR OEM PIAGGIO APRILIA 50 RS4 2011 >-852152 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/1/img/50841.jpg)
10 |
SCREW TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150148 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/5/1/img/45151.jpg)
11 |
CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/5/7/img/62057.jpg)
12 |
BRACKET RIGHT MIRROR OEM APRILIA 50-125 RS 2011 >-B043242 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/5/2/img/45252.jpg)
13 |
KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/5/9/img/62059.jpg)
14 |
GASKET RIGHT DE MIRROR OEM APRILIA 50-125 2011 >-B043244 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/5/8/img/62058.jpg)
15 |
BRACKET LEFT MIRROR OEM PIAGGIO APRILIA 50 RS 2011 >-B043243 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/6/0/img/62060.jpg)
16 |
B043245-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
17 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
18 |
WASHER NYLON/PLASTIQUE (D4) OEM PIAGGIO COMMON A LA RANGE-895916 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
19 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/1/img/71821.jpg)
20 |
SCREW TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150073 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
21 |
NUT FLANGE (D6) OEM PIAGGIO COMMON A LA RANGE-AP8150506 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
22 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
23 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
24 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
25 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
26 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
27 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
28 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 4 |
||||||
|
29 |
2B009289 STEERING PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
30 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
31 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
32 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
33 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 2 |
||||||
|
34 |
AP8150359-SCREW More informationQuantity required : 2 |
