Vehicle Exploded View - APRILIA RS 125 1996-1998 (eng.123cc)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

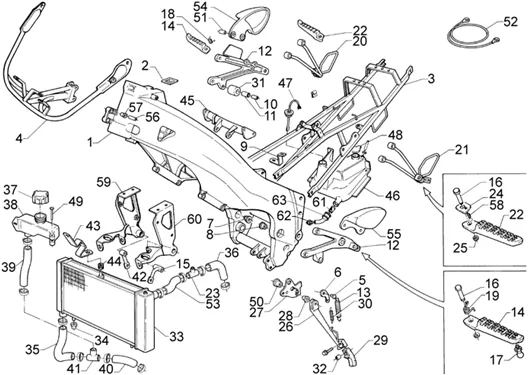

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/271/RS_125_1996-1998_(eng.123cc)_28.01.PNG)
1 |
Cadre poli et lavé |
||||||
|
2 |
AP8102798 - CLIP LARGE More informationQuantity required : 1 |
||||||
|
3 |
Selle sabl.+cataph.; |
||||||
|
4 |
Cadre p-instrum. sab.cat.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/1/2/img/57012.JPG)
5 |
AP8221171-SPACER More informationQuantity required : 1 |
||||||
|
6 |
AP8134266-PLATE RETOUR STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/2/img/46732.jpg)
7 |
SWING ARM PIV. BUSH "PIAGGIO GENUINE PART" APRILIA 125 RS, AF1, TUONO, PEGASO -AP8121156- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/0/img/46730.jpg)
8 |
AP8121150 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
Pla.sup.boît. filtre; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/6/img/46916.jpg)
10 |
SPACER REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX 2018 >-AP8121672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/6/img/46616.jpg)
11 |
SPACER PLASTIQUE (14X19X25) OEM PIAGGIO COMMON A LA RANGE-AP8120568 More informationQuantity required : 1 |
||||||
|
12 |
Supports r-p. pil-paire; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/0/img/46920.jpg)
13 |
AP8121696-RESS. HEL. CYL. TRACT * More informationQuantity required : 1 |
||||||
|
14 |
AP8135313 - R-PIED PILOTE-PAIRE; More informationQuantity required : 1 |
||||||
|
15 |
Support G moteur; |
||||||
|
16 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/8/img/71438.jpg)
17 |
PIVOT FRICTION REST-FOOT OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/1/img/71501.jpg)
18 |
SPRING PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 50-125 RS, TUONO-AP8121939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/2/img/71502.jpg)
19 |
SPRING OF RETURN FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RS, TUONO-AP8121940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/8/8/img/50088.jpg)
20 |
FOOTREST SUPPORT "PIAGGIO GENUINE PART" 125 RS 1999>2005, TUONO 2003>2004 -AP8146724 More informationQuantity required : 1 |
||||||
|
21 |
AP8146725-SUP R/P More informationQuantity required : 1 |
||||||
|
22 |
PASSENGER FOOTREST (PAIR) "PIAGGIO GENUINE PART" 50-125 RS, TUONO, MX, FUTURA -AP8132812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/3/3/img/45133.jpg)
23 |
AP8102112 - RACCORD RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/9/1/img/48691.jpg)
24 |
AP8132720 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
25 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 4 |
||||||
|
26 |
Béquille latérale; |
||||||
|
26 |
Béquille latérale cat.; |
||||||
|
27 |
Plaque béquille; |
||||||
|
27 |
Plaque béquille; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/5/img/71435.jpg)
28 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121114 More informationQuantity required : 1 |
||||||
|
29 |
Caoutchouc rappel béq. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/9/img/46919.jpg)
30 |
AP8121695-RESS. HEL. CYL. TRACT * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/7/img/46617.jpg)
31 |
ROULETTE TENDEUR DE CHAIN OEM PIAGGIO 50 GILERASMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA SX, RX 2018 >-AP8120569 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
32 |
SPACER (14X10X6. 6) OEM COMMON A LA RANGE PIAGGIO/APRILIA-AP8221017 More informationQuantity required : 1 |
||||||
|
33 |
AP8102704 - RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/5/img/46595.jpg)
34 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275 More informationQuantity required : 2 |
||||||
|
35 |
AP8120790 - TUBE RAD.-RACCORD T More informationQuantity required : 1 |
||||||
|
36 |
AP8102118-TUBE CUL. FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/1/6/img/45116.jpg)
37 |
CAP VASE COOLING OEM APRILIA 50 SR H2O 1994 > 2012-AP8101912 More informationQuantity required : 1 |
||||||
|
38 |
AP8101910 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
|
39 |
AP8120787-TUBE RACC.-VASE EXP. More informationQuantity required : 1 |
||||||
|
40 |
Tuyau pompe raccord |
||||||
|
41 |
AP8101916 - "RACCORD EN ""T""" More informationQuantity required : 1 |
||||||
|
42 |
Support D moteur; |
||||||
|
43 |
Support radiateur supérieur; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
44 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
|
45 |
Pla.têt cadre sa.ca; |
||||||
|
46 |
AP8131606 - RESERVOIR HUILE; More informationQuantity required : 1 |
||||||
|
47 |
AP8201192 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
|
48 |
AP8220154-CAP TANK OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
48 |
CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421 More informationQuantity required : 1 |
||||||
|
49 |
AP8101924 - RIVET FORE T?TE BOMB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
50 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8120508 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
51 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 2 |
||||||
|
52 |
AP8102502-CABLE ACCROCHAGE CASQUE More informationQuantity required : 1 |
||||||
|
53 |
AP8120786 - TUBE RADIAT.-RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/4/img/48904.jpg)
54 |
RIGHT -FRONT FOOTREST GUARD "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>1998 -AP8134250 More informationQuantity required : 1 |
||||||
|
55 |
LEFT -FRONT FOOTREST GUARD "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>1998 -AP8134261- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/4/img/46934.jpg)
56 |
AP8121764 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/4/img/46624.jpg)
57 |
RUBBER FRAME OEM APRILIA 125 RS 2T 1995 > 2010-AP8120670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
58 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
|
59 |
Plaque AV D moteur; |
||||||
|
60 |
Plaque AV G moteur; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
61 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
62 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
63 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
