Vehicle Exploded View - APRILIA RS 125 1996-1998 (eng.122cc)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

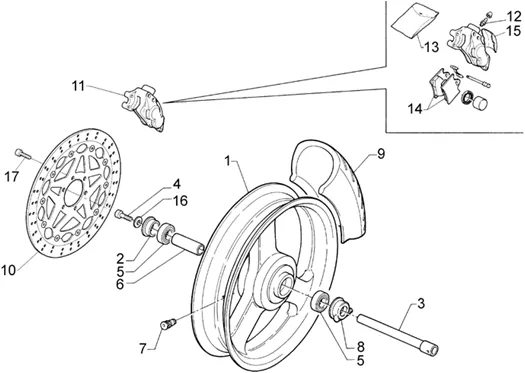

Chassis : 28.06 ROUE AVANT COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/270/RS_125_1996-1998_(eng.122cc)_28.06.PNG)
1 |
Roue AV nue noire |
||||||
|
1 |
Roue AV cpl |
||||||
|
2 |
AP8121157-SPACER EXT. D WHEEL AV. More informationQuantity required : 1 |
||||||
|
2 |
Entretoise ext. D roue av.; |
||||||
|
3 |
AP8125388-WHEEL SPINDLE AV More informationQuantity required : 1 |
||||||
|
4 |
AP8125418-SCREW SPEC. SPINDLE WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/9/img/68609.jpg)
5 |
BEARING (20X42X12) CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-82656R More informationQuantity required : 1 |
||||||
|
5 |
Roulement roue AV; |
||||||
|
6 |
AP8125469 - ENTRETOISE ROULEMENTS More informationQuantity required : 1 |
||||||
|
6 |
Entretoise interne; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
7 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/1/0/img/45110.jpg)
8 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" APRILIA 125 RS 2002>2005 -AP81018196 More informationQuantity required : 1 |
||||||
|
10 |
AP8113567 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
|
11 |
Pince frein AV or |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
12 |
SCREW OF PURGE OEM PIAGGIO COMMON A LA RANGE SCOOTER/MAXI SCOOTER APRILIA-AP8113006 More informationQuantity required : 1 |
||||||
|
13 |
AP8113309 - KIT REVISION PINCE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/0/img/71300.jpg)
14 |
AP8113489 - PLAQUETTES AV-PAIRE More informationQuantity required : 1 |
||||||
|
15 |
AP8113310 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/6/img/50846.jpg)
16 |
WASHER PLATE (15X28X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
17 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 1 |
