Vehicle Exploded View - DERBI RAMBLA 125 Rambla 125-250 E3 2008-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

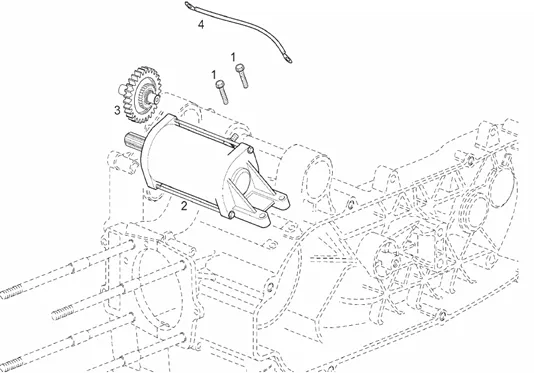

Vues éclatées : 57 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1109/Rambla_125-250_E3_2008-2009_(EMEA)_57.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
1 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/1/6/img/81716.jpg)
2 |
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY-58218R5 More informationQuantity required : 1 |
||||||
3 |
8427035 - ENSAMBLE RENVOI More informationQuantity required : 1 |
||||||
|
4 |
639737 - CABLE More informationQuantity required : 1 |
