Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2005 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

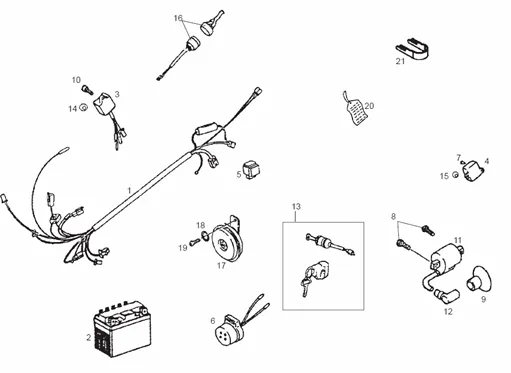

Circuit electrique : 12 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1105/QUAD_DFW_50cc_2005_E2_3_edicion_12_20250925174012.png)
1 |
00Q01001301 - INSTALACION ELECTRICA More informationQuantity required : 1 |
||||||
|
1 |
00Q01002301 - INSTALACION ELECTRICA More informationQuantity required : 1 |
||||||
|
2 |
00Q03300401 - BATERIA More informationQuantity required : 1 |
||||||
|
3 |
00Q01002841 - C.D.I. More informationQuantity required : 1 |
||||||
|
4 |
00Q01001841 - REGULADOR More informationQuantity required : 1 |
||||||
|
5 |
00Q03900011 - RELE ARRANQUE More informationQuantity required : 1 |
||||||
|
6 |
00Q01700401 - CENTRAL INTERMIT. More informationQuantity required : 1 |
||||||
|
6 |
00Q01701401 - CENTRAL INTERMITENTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
7 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200 More informationQuantity required : 1 |
||||||
|
8 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
|
9 |
00Q03300791 - CAPUCHON BUJIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
10 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
|
11 |
00Q03300171 - CONVERSOR ELECTRICO More informationQuantity required : 1 |
||||||
|
11 |
00Q03301171 - CONVERSOR ELECTRICO More informationQuantity required : 1 |
||||||
|
12 |
00Q03300271 - PIPA BUJIA More informationQuantity required : 1 |
||||||
|
13 |
00Q05901251 - KIT CERRADURA More informationQuantity required : 1 |
||||||
|
14 |
00Q02800561 - ARANDELA MUELLE More informationQuantity required : 1 |
||||||
|
15 |
00000033050 - RONDELLE GROWER D5 D127 More informationQuantity required : 1 |
||||||
|
16 |
00Q01700691 - CONMUTADOR SEGURIDAD More informationQuantity required : 1 |
||||||
|
17 |
00Q01000311 - CLAXON More informationQuantity required : 1 |
||||||
|
18 |
00Q02800561 - ARANDELA MUELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
19 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
||||||
|
20 |
00Q05100581 - ETIQUETA AVISO More informationQuantity required : 1 |
||||||
|
21 |
00Q05901261 - SOPORTE More informationQuantity required : 1 |
