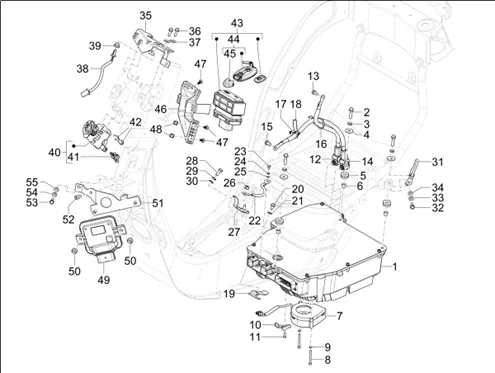

Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera Elettrica TECH RED 70 km-h 2024 (EMEA)

	P2R reference
	Maker reference	1A023944

Système de gestion du moteur

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	65358
	Maker reference	0137555

013755-WASHER

	P2R reference	66031
	Maker reference	258904

RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904

	P2R reference	77283
	Maker reference	270215

270215-SPACER

	P2R reference	155386
	Maker reference	1A0132845

1A0132845-VENTILATEUR

	P2R reference	110955
	Maker reference	615796

615796 SCREW

	P2R reference	63836
	Maker reference	0069645

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

	P2R reference	155387
	Maker reference	1A013080

1A013080-RETENUE CABLE

	P2R reference	139271
	Maker reference	1A005257

1A005257-SCREW

	P2R reference	155365
	Maker reference	CM293601

CM293601-CABLE BATTERY

	P2R reference	66655
	Maker reference	484123

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

	P2R reference	155364
	Maker reference	CM293701

CM293701-CABLE BATTERY

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	65742
	Maker reference	145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

	P2R reference	127593
	Maker reference	1D001143

CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143

	P2R reference	67280
	Maker reference	583282

583282-GASKET PROTECT ARR FX

	P2R reference	155390
	Maker reference	1B006014

1B006014-BRACKET

	P2R reference	70959
	Maker reference	969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

	P2R reference	66076
	Maker reference	269134

WASHER PLATE (6. 4X12X1) OEM PIAGGIO COMMON A LA RANGE-269134

	P2R reference	200119
	Maker reference	CM297305

CM297305-CREUX DE MASSE

	P2R reference	65629
	Maker reference	0310235

031023-SCREW S03102300

	P2R reference	65414
	Maker reference	0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

	P2R reference	63775
	Maker reference	0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

	P2R reference	214143
	Maker reference	2419376

2419376-NUT BRIDÃ

	P2R reference	220770
	Maker reference	1B006415

1B006415-GROUND STIRRUP WITH IP

	P2R reference	67915
	Maker reference	641204

641204-BOLT

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	63777
	Maker reference	0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

	P2R reference	200105
	Maker reference	CM297304

CM297304-CREUX DE MASSE

	P2R reference	67915
	Maker reference	641204

641204-BOLT

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	63777
	Maker reference	0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

	P2R reference	151374
	Maker reference	1B005388

1B005388-BRACKET

	P2R reference	68890
	Maker reference	830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

	P2R reference	65421
	Maker reference	0166035

WASHER PLATE (5. 2X16X1. 3) OEM PIAGGIO COMMON A LA RANGE-016603

	P2R reference	178707
	Maker reference	1D003720R

SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R

	P2R reference	151373
	Maker reference	1B005386

1B005386-GUIDE-CABLE

	P2R reference	216253
	Maker reference	1D004208

1D004208-SENSOR OF POSITION D'ACCELERATEUR

	P2R reference	127593
	Maker reference	1D001143

CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	201010
	Maker reference	1D004781

KIT COMPLETE KEYLESS OEM PIAGGIO 125-300 GTS VESPA 2022 >-1D004781

	P2R reference	201011
	Maker reference	1D004008

CONTROL RADIOEMETTEUR WITHOUT CLE OEM PIAGGIO 125-300 GTS 2022 >-1D004008

	P2R reference	201012
	Maker reference	1D004390

1D004390-COVER FOR REMOTE CONTROL

	P2R reference	212250
	Maker reference	1B010313

1B010313-KEYLESS CONTROL UNIT BRACKET

	P2R reference	96280
	Maker reference	CM178606

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606

	P2R reference	109019
	Maker reference	157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

	P2R reference	220771
	Maker reference	CM335210

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716-

	P2R reference	70940
	Maker reference	969224

NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224

	P2R reference
	Maker reference	1B011194

Bracket

	P2R reference	65714
	Maker reference	122675

SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675

	P2R reference	67915
	Maker reference	641204

641204-BOLT

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	63777
	Maker reference	0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056
