Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Up-Date 2009-2010 PIAGGIO VU

Châssis - parties plastiques - carrosseries : 02.18 BENNE OUVERTE - (TIPPER)

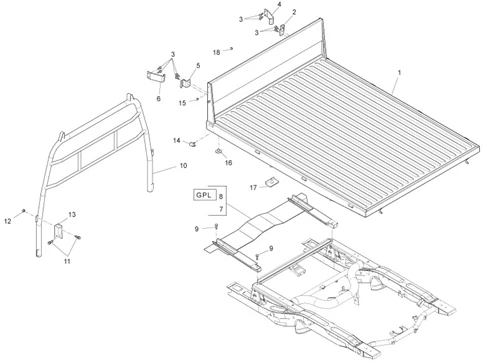

Benne ouverte - (Tipper)
Search
6482125 - PANNEAU

1
P2R reference P2R reference 124314
Maker reference Maker reference 6482125

6482125 - PANNEAU

More information

Quantity required : 1

B0048955 - PANNEAU

1
P2R reference P2R reference 124313
Maker reference Maker reference B0048955

B0048955 - PANNEAU

More information

Quantity required : 1

615529 - CROCHET

2
P2R reference P2R reference 158410
Maker reference Maker reference 615529

615529 - CROCHET

More information

Quantity required : 1

SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820

3
P2R reference P2R reference 110387
Maker reference Maker reference D9166160820

SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820

More information

Quantity required : 8

614268 - CROCHET

4
P2R reference P2R reference 112979
Maker reference Maker reference 614268

614268 - CROCHET

More information

Quantity required : 1

615530 - CROCHET

5
P2R reference P2R reference 113227
Maker reference Maker reference 615530

615530 CROCHET

More information

Quantity required : 1

614269 - CROCHET

6
P2R reference P2R reference 112230
Maker reference Maker reference 614269

614269 CROCHET

More information

Quantity required : 1

644643 - COPERTURA VANO MOTORE

7
P2R reference P2R reference 120270
Maker reference Maker reference 644643

644643 - COPERTURA VANO MOTORE

More information

Quantity required : 1

B004632 - COUVERTURE MOTEUR

8
P2R reference P2R reference 121062
Maker reference Maker reference B004632

B004632 COVER ENGINE

More information

Quantity required : 1

SCREW TH (10X30) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9165141028

9
P2R reference P2R reference 110102
Maker reference Maker reference D9165141028

SCREW TH (10X30) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9165141028

More information

Quantity required : 4

646244 - PROTECTION

10
P2R reference P2R reference 122290
Maker reference Maker reference 646244

646244 PROTECTOR *

More information

Quantity required : 1

D9165160820 - BOULON

11
P2R reference P2R reference 110120
Maker reference Maker reference D9165160820

D9165160820 BOLT

More information

Quantity required : 4

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

12
P2R reference P2R reference 65455
Maker reference Maker reference 0200085

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

More information

Quantity required : 2

644638 - SUPPORT

13
P2R reference P2R reference 113567
Maker reference Maker reference 644638

644638 BRACKET

More information

Quantity required : 2

567732 - TAMPON

14
P2R reference P2R reference 111110
Maker reference Maker reference 567732

567732 BUFFER

More information

Quantity required : 4

9004871154000 - BOUCHON

15
P2R reference P2R reference 111044
Maker reference Maker reference 9004871154000

9004871154000 CAP

More information

Quantity required : 2

BUFFER DE BENNE OEM PIAGGIO PORTER 2010 > 2020-645795

16
P2R reference P2R reference 112368
Maker reference Maker reference 645795

BUFFER DE BENNE OEM PIAGGIO PORTER 2010 > 2020-645795

More information

Quantity required : 2

BUFFER CENTRAL APPUI BENNE OEM PIAGGIO PORTER 2009 > 2020-645670

17
P2R reference P2R reference 111862
Maker reference Maker reference 645670

BUFFER CENTRAL APPUI BENNE OEM PIAGGIO PORTER 2009 > 2020-645670

More information

Quantity required : 2

B000713 - BOUCHON

18
P2R reference P2R reference 112408
Maker reference Maker reference B000713

B000713 CAP

More information

Quantity required : 2
