Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3000)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

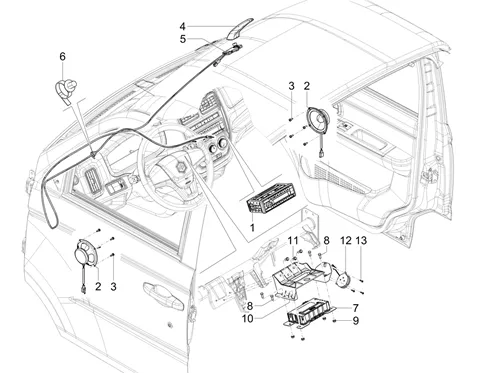

Circuit électrique : 11.15 SYSTÈME STÉRÉO - E-CALL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/998/Porter_NP6_(TW_3000)_11.15.png)
1 |
4O000016 CAR RADIO WITH DAB More informationQuantity required : 1 |
|||||||||
|
2 |
WG0791020400A0 - SPEAKER ASSEMBLY More informationQuantity required : 2 |
|||||||||
|
3 |
WQ220B4816F61 CROSS SLOTTED CAP SCREW WITH WASHER More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/9/0/img/173890.jpg)
4 |
ANTENNE AUTORADIO OEM PIAGGIO PORTER NP6 2021 >-WET791030701A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/9/1/img/173891.jpg)
5 |
CABLE ANTENNE AUTORADIO OEM PIAGGIO PORTER NP6 2021 >-WET791030300A0 More informationQuantity required : 1 |
|||||||||
|
6 |
WL0362080004A0 SPECIAL TIE STRIP More informationQuantity required : 1 |
|||||||||
|
7 |
1D002815 - EMERGENCY CALL DEVICE More informationQuantity required : 1 |
|||||||||
|
8 |
WQ150B0616F61 HEXAGON HEAD BOLT More informationQuantity required : 4 |
|||||||||
|
9 |
WQ32006F61 ÉROU HEXAGONAL FLANGE More informationQuantity required : 4 |
|||||||||
|
10 |
WET382030000A0 BRACKET, E-CALL More informationQuantity required : 1 |
|||||||||
|
11 |
WQ1840620F61 HEXAGON HEAD BOLT WITH FLANGE More informationQuantity required : 3 |
|||||||||
|
12 |
WET791020100A0 ECALL LOUDSPEAKER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/9/7/img/173897.jpg)
13 |
SCREW AUTOTARAUDEUSE (3, 5X16) CRUCIFORME OEM PIAGGIO PORTER NP6-WQ2713516F62 More informationQuantity required : 3 |
|||||||||
