Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 3070) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

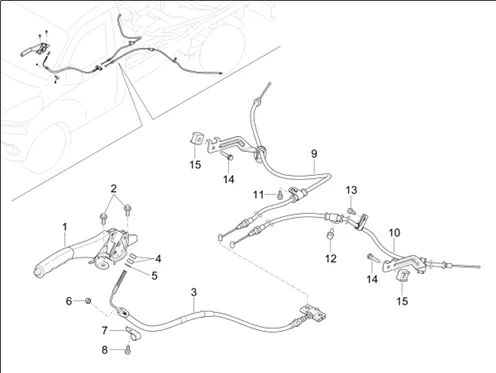

10_circuit de freinage : 10.05 05_FREIN À MAIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1174/Porter_NP6_(SW_3070)_M.Y._2022_10.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/7/9/7/img/173797.jpg)
1 |
LEVER BRAKE A MAIN OEM PIAGGIO PORTER NP6 2021 >-WET353020101A0 More informationQuantity required : 1 |
||||||
2 |
WQ1840820F61 HEXAGON FLANGE BOLT More informationQuantity required : 2 |
||||||
|
3 |
CABLE/CONTROL/TRANSMISSION OF BRAKE DE STATIONNEMENT PRINCIPAL OEM PIAGGIO PORTER NP6 SW 2650 2021 >-WET353030114A0 More informationQuantity required : 1 |
||||||
|
4 |
WQ360B08F61 NUT HEXAGONAL More informationQuantity required : 2 |
||||||
|
5 |
WQ401B08F62 WASHER PLATE More informationQuantity required : 1 |
||||||
|
6 |
WQ32006F61 ÉROU HEXAGONAL FLANGE More informationQuantity required : 1 |
||||||
|
7 |
WL0353050400A0 AGRAFE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/9/9/img/173199.jpg)
8 |
SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61 More informationQuantity required : 1 |
||||||
|
9 |
WET240160502A0 (*) PARKING CABLE, RH More informationQuantity required : 1 |
||||||
|
10 |
WET240160601A0 (*) PARKING CABLE, LH More informationQuantity required : 1 |
||||||
|
11 |
SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61 More informationQuantity required : 1 |
||||||
|
12 |
SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61 More informationQuantity required : 1 |
||||||
|
13 |
SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61 More informationQuantity required : 1 |
||||||
|
14 |
WQ146B0630F61 BOLT SPRING WASHER AND PLAIN WASHER ASS More informationQuantity required : 2 |
||||||
|
15 |
WET353140402A0 PARKING BRAKE CABLE BRACKET PORTER More informationQuantity required : 2 |
