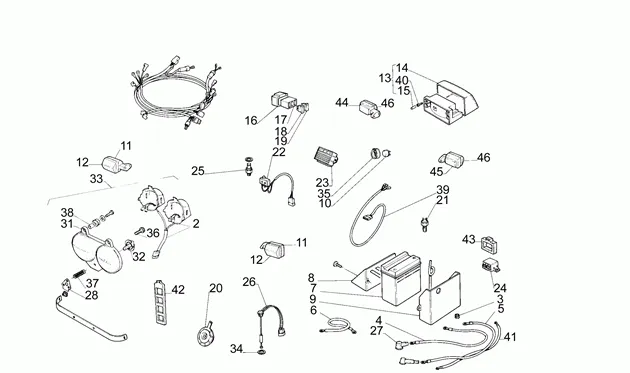

Vehicle Exploded View - APRILIA PEGASO 600 PEGASO 600 1990-1991

	P2R reference	163555
	Maker reference	AP8112631

AP8112631 - FAISCEAU COMPLET

	P2R reference	71384
	Maker reference	AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

	P2R reference	163556
	Maker reference	AP8112505

AP8112505 - CABLE BATTERIE/RELAIS

	P2R reference	163557
	Maker reference	AP8112503

AP8112503 - CABLE DE MASSE

	P2R reference	163558
	Maker reference	AP8112504

AP8112504 - CABLE NEGATIF BATTERIE

	P2R reference	71278
	Maker reference	AP8112912

AP8112912 - =8112912=8112912

	P2R reference	163559
	Maker reference	AP8130226

AP8130226 - STAFFA SUPP.BATT=8130226

	P2R reference	163560
	Maker reference	AP8130668

AP8130668 - SUPPORT BATTERIE

	P2R reference	71563
	Maker reference	AP8124235

CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235

	P2R reference	163561
	Maker reference	AP8112665

AP8112665 - CLIGNOTANT COMPLET AVANT

	P2R reference	163562
	Maker reference	AP8112264

AP8112264 - CABOCHON CLIGNOTANT

	P2R reference	45859
	Maker reference	AP8112531

LAMP REAR OEM PIAGGIO APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG 2004 <-AP8112531

	P2R reference	45871
	Maker reference	AP8112633

AP8112633 - GLACE PHARE AR

	P2R reference	46927
	Maker reference	AP8121718

BUSH SPACER (6X10X16) OEM PIAGGIO COMMON A LA RANGE-AP8121718

	P2R reference	163563
	Maker reference	AP8120584

AP8120584 - C/C SUPPORT FUSIBLE

	P2R reference	163564
	Maker reference	AP8112174

AP8112174 - PORTE FUSIBLE (PL)

	P2R reference	66254
	Maker reference	292507

BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507

	P2R reference	66804
	Maker reference	495357

495357 - FUSIBLE

	P2R reference	163565
	Maker reference	AP8124747

AP8124747 - KLAXON

	P2R reference	47498
	Maker reference	AP8124479

INTERRUPTEUR/CONTACTEUR DE STOP ON MAITRE CYLINDER REAR OEM PIAGGIO APRILIA 50-125 RS 1996 > 2011, RX 1995 > 2004-AP8124479

	P2R reference	56244
	Maker reference	AP8212196

STOP SWITCH+WIRING "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, CLASSIC, TUONO, 125 PEGASO, TUONO, 600-650 PEGASO -AP8212196

	P2R reference	45894
	Maker reference	AP8112906

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, MX, CLASSIC, 650 PEGASO, 125 LEONARDO ROTAX, 125 SCARABEO ROTAX -AP8112906-

	P2R reference	45882
	Maker reference	AP8112759

AP8112759 - RELAIS DEMARREUR

	P2R reference	163566
	Maker reference	AP8101446

AP8101446 - SONDE DE TEMPERATURE

	P2R reference	163567
	Maker reference	AP8112430

AP8112430 - SONDE NIVEAU HUILE (PL)

	P2R reference	46592
	Maker reference	AP8120218

AP8120218-CAPUCHON BORNE

	P2R reference	163568
	Maker reference	AP8232338

AP8232338 - RONDELLE DE REGLAGE

	P2R reference	163569
	Maker reference	AP8112724

AP8112724 - FEU AVANT NU

	P2R reference	163570
	Maker reference	AP8112723

AP8112723 - DOUILLE D'AMP.FEU AV

	P2R reference	163571
	Maker reference	AP8112547

AP8112547 - OPTIQUE COMPLET

	P2R reference	163572
	Maker reference	AP8120196

AP8120196 - JOINT TORIQUE

	P2R reference	163573
	Maker reference	AP8120614

AP8120614 - SUPPORT CENTRALE CLIGNO

	P2R reference	163574
	Maker reference	AP8120580

AP8120580 - VIS REGLAGE PHARE

	P2R reference	46923
	Maker reference	AP8121710

SPRING DE HEADLAMP OEM APRILIA 50 SONIC 1998 > 2008-AP8121710

	P2R reference	46927
	Maker reference	AP8121718

BUSH SPACER (6X10X16) OEM PIAGGIO COMMON A LA RANGE-AP8121718

	P2R reference	163575
	Maker reference	AP8112751

AP8112751 - CABLE RECHARGE BATTERIE

	P2R reference	97064
	Maker reference	AP8120223

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120223

	P2R reference	163576
	Maker reference	AP8112375

AP8112375 - CABLE DE MASSE

	P2R reference	163577
	Maker reference	AP8120669

AP8120669 - PLAQUE DE CONNEXION

	P2R reference	163578
	Maker reference	AP8134232

AP8134232 - SUPPORT RELAIS

	P2R reference	163579
	Maker reference	AP8112782

AP8112782 - CLIGNOTANT AR. D.

	P2R reference	163580
	Maker reference	AP8112781

AP8112781 - CLIGNOTANT AR.G.(PL)

	P2R reference	163581
	Maker reference	AP8112032

AP8112032 - CABOCHON CLIGNOTANT AR.
