Vehicle Exploded View - MOTO-GUZZI NTX 350 1987-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

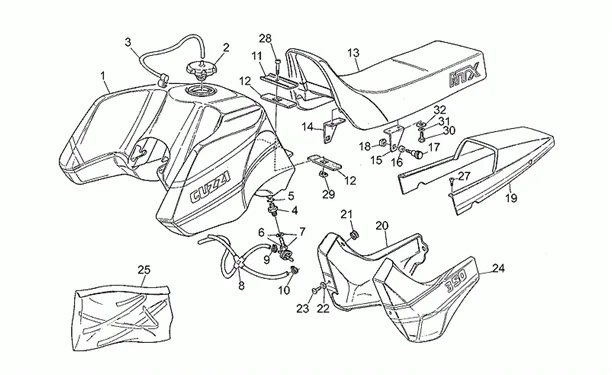

Chassis : 33.03 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/509/NTX_350_1987-1990_33.03.PNG)
1 |
RESERVOIR |
||||||
|
2 |
BOUCHON RESERVOIR |
||||||
|
3 |
GU66109715-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
5 |
|
||||||
|
6 |
|
||||||
|
7 |
|
||||||
|
8 |
Tuyau essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
9 |
CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/0/img/131930.jpg)
10 |
GU61108500-CLAMP D9 More informationQuantity required : 2 |
||||||
|
11 |
GU27103515-PLATE D ARRET More informationQuantity required : 1 |
||||||
|
12 |
CAOUTCHOUC |
||||||
|
13 |
SIEGE |
||||||
|
14 |
PLAQUE |
||||||
|
15 |
GU27460911 - PLAQUE More informationQuantity required : 1 |
||||||
|
16 |
GU91180605-SPACER More informationQuantity required : 2 |
||||||
|
17 |
POIGNEE |
||||||
|
18 |
GU92660601-NUT EN CAGE More informationQuantity required : 21 |
||||||
|
19 |
|
||||||
|
19 |
CARENAGE ARR |
||||||
|
19 |
CARENAGE ARR |
||||||
|
19 |
CARENAGE ARR |
||||||
|
20 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
21 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 4 |
||||||
|
22 |
GU66478610-WASHER NYLON 6X17X1 More informationQuantity required : 2 |
||||||
|
23 |
GU98326016 - VIS More informationQuantity required : 2 |
||||||
|
24 |
|
||||||
|
25 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/6/img/68516.jpg)
27 |
SCREW BTR HEAD FRAISEE (5X16) OEM PIAGGIO COMMON A LA RANGE-825079 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
28 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-GU98622430 More informationQuantity required : 1 |
||||||
|
29 |
GU92660801-NUT EN CAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
30 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 4 |
||||||
|
31 |
Rondelle évent. |
||||||
|
32 |
|
