Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada S Anniversario 750 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

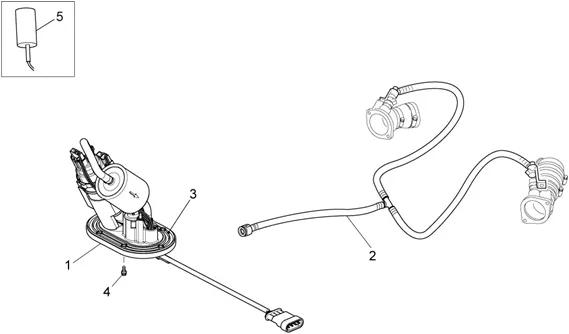

Chassis : 33.21 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/505/Nevada_S_Anniversario_750_2012_33.21.PNG)
1 |
887425-PUMP CARBURANTE More informationQuantity required : 1 |
||||||
|
1 |
887768 - POMPA CARBURANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/4/1/4/img/131414.jpg)
2 |
FUEL HOSE OEM PIAGGIO MOTO-GUZZI 750 NEVADA, V7 CLASSIC-GU32106560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/2/9/img/73429.jpg)
3 |
GASKET OF FUEL PUMP OEM PIAGGIO MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-GU05107430 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
4 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 6 |
||||||
|
5 |
887787-SENSORE LIVELLO A NTC NEVADA More informationQuantity required : 1 |
