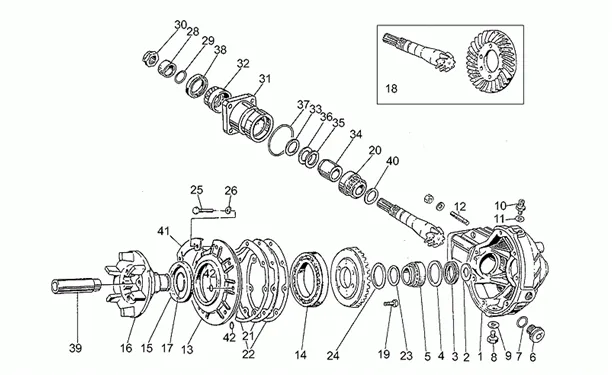

Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993

	P2R reference
	Maker reference	GU19350362

CARTER DE PONT

	P2R reference	129588
	Maker reference	GU19351900

GU19351900-WASHER D'APPUI

	P2R reference	132184
	Maker reference	GU90403547

OIL SEAL (35X47X7) CASING ENGINE OEM MOTO GUZZI COMMON A LA RANGE-GU90403547

	P2R reference	129586
	Maker reference	GU19351100

WASHER APPUI TRANSMISSION REAR OEM MOTO GUZZI BREVA, STRADA, V7, V9, V85-GU19351100

	P2R reference	132438
	Maker reference	GU92252235

BEARING DE TRANSMISSION (35X50X17) OEM PIAGGIO MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA-2B006090R

	P2R reference	129113
	Maker reference	GU12022600

CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600

	P2R reference	132224
	Maker reference	GU90706203

O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203

	P2R reference	131022
	Maker reference	GU31003766

CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766

	P2R reference	129097
	Maker reference	GU10528900

GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900

	P2R reference	126487
	Maker reference	GU19206501

CAP DE REMPLISSAGE BOX OF SPEED OU TRANSMISSION OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65-GU19206501

	P2R reference	129097
	Maker reference	GU10528900

GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900

	P2R reference	132821
	Maker reference	GU96508055

STUD (8X55) OEM PIAGGIO COMMON A LA RANGE-GU96508055

	P2R reference
	Maker reference	GU27350410

COUVERCLE

	P2R reference	132382
	Maker reference	GU92201070

BEARING DE TRANSMISSION (70X10X13) OEM PIAGGIO MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA-GU92201070

	P2R reference	132197
	Maker reference	GU90407590

GU90407590 - BAGUE D'ETANCHEITE 75X90X8

	P2R reference	129587
	Maker reference	GU19351401

GU19351401-PIVOT

	P2R reference	132155
	Maker reference	GU90353030

CLIPS/CIRCLIPS PIVOT DE TRANSMISSION OEM MOTO GUZZI COMMON A LA RANGE-GU90353030

	P2R reference	129795
	Maker reference	GU20354621

GU20354621 - COUPLE CONIQUE Z=8/31

	P2R reference	129624
	Maker reference	GU19356320

GU19356320-SCREW

	P2R reference	165022
	Maker reference	GU92249223

GU92249223 - ROULEMENT ROUL.CON.

	P2R reference	129615
	Maker reference	GU19355400

GU19355400-CALE 0, 8 MM

	P2R reference	129616
	Maker reference	GU19355402

GU19355402-CALE 0, 9 MM

	P2R reference	129617
	Maker reference	GU19355404

GU19355404-CALE 1 MM

	P2R reference	129618
	Maker reference	GU19355406

GU19355406-CALE 1, 1 MM

	P2R reference	129619
	Maker reference	GU19355408

GU19355408-CALE 1, 2 MM

	P2R reference	129620
	Maker reference	GU19355410

GU19355410-CALE 1, 3 MM

	P2R reference	129621
	Maker reference	GU19355411

GU19355411-CALE 1, 4 MM

	P2R reference	129622
	Maker reference	GU19355412

GU19355412-CALE 1, 5 MM

	P2R reference	129623
	Maker reference	GU19355413

GU19355413 - CALE 1,6 MM

	P2R reference	129585
	Maker reference	GU19350700

GASKET CASING DE TRANSMISSION OEM PIAGGIO MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA-GU19350700

	P2R reference	129589
	Maker reference	GU19352300

GU19352300-WASHER EVENTAIL

	P2R reference	129591
	Maker reference	GU19353500

GU19353500-WASHER EVENTAIL

	P2R reference	129628
	Maker reference	GU19357660

SCREW TH (8X25) OEM PIAGGIO COMMON A LA RANGE-GU19357660

	P2R reference	131932
	Maker reference	GU61270300

WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300

	P2R reference	129627
	Maker reference	GU19356801

SPACER SHAFT DE TRANSMISSION OEM PIAGGIO MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75,-GU19356801

	P2R reference	132223
	Maker reference	GU90706188

O-RING (18. 77X1. 78) COUPLE CONIQUE (18, 77X1, 78) OEM MOTO GUZZI COMMON A LA RANGE-GU90706188

	P2R reference	129625
	Maker reference	GU19356700

NUT DE FLASQUE SHAFT DE TRANSMISSION OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA-GU19356700

	P2R reference	129590
	Maker reference	GU19352401

GU19352401-HABILLAGE BEARING

	P2R reference	132425
	Maker reference	GU92249220

BEARING (20X47X14) A ROLLER OEM PIAGGIO MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75,-GU92249220

	P2R reference	129595
	Maker reference	GU19355300

GU19355300-CALE 1 MM

	P2R reference	129596
	Maker reference	GU19355301

GU19355301-CALE 1, 1 MM

	P2R reference	129597
	Maker reference	GU19355302

GU19355302-CALE 1, 2 MM

	P2R reference	129598
	Maker reference	GU19355303

GU19355303-CALE 1, 3 MM

	P2R reference	129599
	Maker reference	GU19355304

GU19355304-CALE 1, 4 MM

	P2R reference	129600
	Maker reference	GU19355305

GU19355305-CALE 1, 5 MM

	P2R reference	129601
	Maker reference	GU19355306

GU19355306-CALE 1, 6 MM

	P2R reference	129602
	Maker reference	GU19355307

GU19355307-CALE 1, 7 MM

	P2R reference	129603
	Maker reference	GU19355308

GU19355308-CALE 1, 8 MM

	P2R reference	129604
	Maker reference	GU19355309

GU19355309-CALE 1, 9 MM

	P2R reference	129592
	Maker reference	GU19355121

GU19355121 - ENTRETOISE

	P2R reference	129593
	Maker reference	GU19355200

GU19355200-WASHER AJUSTEM. 0, 1 MM

	P2R reference	129594
	Maker reference	GU19355202

WASHER AJUSTEMEMENT (0, 15 MM) TRANSMISSION OEM MOTO GUZZI V7 2020 <-GU19355202

	P2R reference	132247
	Maker reference	GU90706552

GU90706552 - BAGUE D'ETANCHEITE

	P2R reference	132181
	Maker reference	GU90403247

OIL SEAL (32X47X7) OEM PIAGGIO COMMON A LA RANGE-GU90403247

	P2R reference	130050
	Maker reference	GU27634110

GU27634110-SPACER

	P2R reference	129605
	Maker reference	GU19355320

GU19355320-CALE 1 MM

	P2R reference	129606
	Maker reference	GU19355321

GU19355321-CALE 1, 1 MM

	P2R reference	129607
	Maker reference	GU19355322

GU19355322-CALE 1, 2 MM

	P2R reference	129608
	Maker reference	GU19355323

GU19355323 - CALE 1,3 MM

	P2R reference	129609
	Maker reference	GU19355324

GU19355324-CALE 1, 4 MM

	P2R reference	129610
	Maker reference	GU19355325

GU19355325-CALE 1, 5 MM

	P2R reference	129611
	Maker reference	GU19355326

GU19355326-CALE 1, 6 MM

	P2R reference	129612
	Maker reference	GU19355327

GU19355327-CALE 1, 7 MM

	P2R reference	129613
	Maker reference	GU19355328

GU19355328-CALE 1, 8 MM

	P2R reference	129614
	Maker reference	GU19355329

GU19355329-CALE 1, 9 MM

	P2R reference
	Maker reference	GU27357411

PLAQUE

	P2R reference	132209
	Maker reference	GU90706076

O-RING OEM MOTO GUZZI COMMON A LA RANGE-GU90706076
