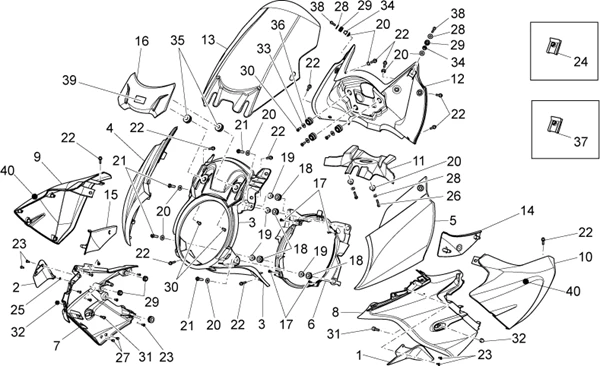

Chassis : 28.54 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_28.54.PNG)
1 |
894007-DEFLECTOR LEFT More informationQuantity required : 1 |
|||||||||
|
2 |
894006-DEFLECTOR DOITRE More informationQuantity required : 1 |
|||||||||
|
3 |
89094300XE8-LEG SHIELD, GREY More informationQuantity required : 1 |
|||||||||
|
4 |
89094400BM-COVER, WHITE More informationQuantity required : 1 |
|||||||||
|
4 |
89094400XD2-COVER, BLUE More informationQuantity required : 1 |
|||||||||
|
4 |
89094400XN2 - COUVERCLE, NOIR More informationQuantity required : 1 |
|||||||||
|
4 |
89094400XR7-COVER More informationQuantity required : 1 |
|||||||||
|
4 |
89094400YA3-COVER More informationQuantity required : 1 |
|||||||||
|
5 |
89094500BM-COVER, WHITE More informationQuantity required : 1 |
|||||||||
|
5 |
89094500XD2-COVER, BLUE More informationQuantity required : 1 |
|||||||||
|
5 |
HEADLIGHT COVER - LEFT "PIAGGIO GENUINE PART" APRILIA 850 MANA 2009>2016 NOIR COMPETITION -89094500XN2- More informationQuantity required : 1 |
|||||||||
|
5 |
89094500XR7-COVER More informationQuantity required : 1 |
|||||||||
|
5 |
89094500YA3-COVER More informationQuantity required : 1 |
|||||||||
|
6 |
890942-BRACKET HEADLAMP More informationQuantity required : 1 |
|||||||||
|
7 |
89094600XE8-FAIRING LAT. D, GREY More informationQuantity required : 1 |
|||||||||
|
8 |
89094700XE8-FAIRING LAT. G, GREY More informationQuantity required : 1 |
|||||||||
|
9 |
89094800BM - CONVOYEUR D, BLANC More informationQuantity required : 1 |
|||||||||
|
9 |
89094800XD2 - CONVOYEUR D, BLEU More informationQuantity required : 1 |
|||||||||
|
9 |
89094800XN2 - CONVOYEUR D, NOIR More informationQuantity required : 1 |
|||||||||
|
9 |
890948-DUCT D More informationQuantity required : 1 |
|||||||||
|
9 |
89094800YA3-DUCT D. More informationQuantity required : 1 |
|||||||||
|
10 |
89094900BM - CONVOYEUR G, BLANC More informationQuantity required : 1 |
|||||||||
|
10 |
89094900XD2 - CONVOYEUR G, BLEU More informationQuantity required : 1 |
|||||||||
|
10 |
89094900XN2 - CONVOYEUR G, NOIR More informationQuantity required : 1 |
|||||||||
|
10 |
89094900XR7 - CONVOYEUR G More informationQuantity required : 1 |
|||||||||
|
10 |
89094900YA3 - CONVOYEUR G. More informationQuantity required : 1 |
|||||||||
|
11 |
890950-PROTECTOR BLOQUE-STEERING More informationQuantity required : 1 |
|||||||||
|
12 |
BRACKET INSTRUMENT CLUSTER OEM PIAGGIO APRILIA 850 MANA 2009 > 2016 WHITE GLAM-890953 More informationQuantity required : 1 |
|||||||||
|
13 |
WIND SHIELD "PIAGGIO GENUINE PART" APRILIA 850 MANA 2009>2016 -895248- More informationQuantity required : 1 |
|||||||||
|
14 |
894003-COVER More informationQuantity required : 1 |
|||||||||
|
15 |
894004-COVER More informationQuantity required : 1 |
|||||||||
|
16 |
894005 - COUVERCLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
18 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
19 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
20 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
21 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 4 |
|||||||||
|
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
22 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
23 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 18 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
24 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
25 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
26 |
SCREW BTR HEAD BOMBEE (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152136 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
27 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
28 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
29 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
30 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
31 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
|||||||||
|
32 |
AP8150474-NUT BORGNE INOX More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
33 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
34 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
35 |
RUBBER 10X25 OEM PIAGGIO COMMON A LA RANGE-GU32577910 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
36 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
37 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
38 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
|||||||||
|
39 |
890003 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
40 |
854903-PLATE More informationQuantity required : 2 |
|||||||||
