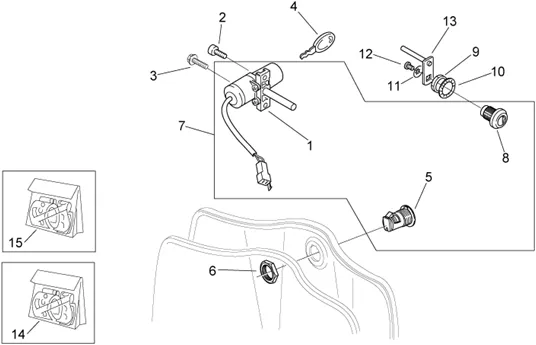

Chassis : 28.28 DÉCALCO ET KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/260/Mojito_Custom_50_2T_(eng.Piaggio)_04-08_28.28.PNG)
1 |
AP8124886 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
2 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
4 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/3/img/71233.jpg)
5 |
GLOVE BOX LOCK "PIAGGIO GENUINE PART" 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
6 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/9/3/img/45293.jpg)
7 |
IGNITION SWITCH/LOCK OEM PIAGGIO APRILIA 50-125 MOJITO-AP8104050 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/4/2/img/55442.jpg)
8 |
LOCK DE UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO APRILIA 50-125 MOJITO-AP8202169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
10 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
11 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
12 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
|
13 |
AP8202167 - LEVIER FERMETURE SELLE More informationQuantity required : 1 |
||||||
|
14 |
AP8177042 - DECALCO SERIE, MOJITO; More informationQuantity required : 1 |
||||||
|
14 |
AP8267615-DECAL SERIE, COMPAY More informationQuantity required : 1 |
||||||
|
14 |
AP8267616 - DECALCO SERIE, COMPAY; More informationQuantity required : 1 |
||||||
|
14 |
AP8277606-DECAL SERIE More informationQuantity required : 1 |
||||||
|
14 |
AP8277607 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
14 |
AP8277702 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
14 |
856512 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
14 |
860849 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
14 |
860851-DECAL SERIE More informationQuantity required : 1 |
||||||
|
14 |
860853 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
860855 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
860857-DECAL More informationQuantity required : 1 |
||||||
|
14 |
STICKERS KIT- "PIAGGIO GENUINE PART" APRILIA 50 MOJITO -AP8177041- More informationQuantity required : 1 |
||||||
|
15 |
AP8166478-DECAL SERIE TECNICA More informationQuantity required : 1 |
