Vehicle Exploded View - APRILIA MOJITO 125 E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

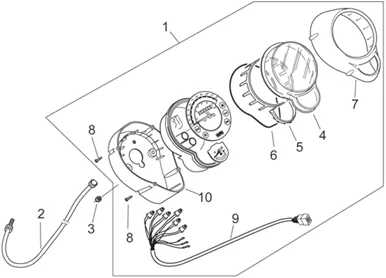

Chassis : 28.17 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_28.17.PNG)
1 |
AP8127537 - CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/4/1/img/71341.jpg)
2 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 MOJITO-AP8114472 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
|
4 |
AP8224231 - VITRE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
5 |
AP8224232-ECRAN DIFFUSEUR More informationQuantity required : 1 |
||||||
|
6 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
AP8224240-CADRE CHROME More informationQuantity required : 1 |
||||||
|
8 |
Vis taraud |
||||||
|
9 |
AP8124921 - CABLAGE AVEC LAMPES; More informationQuantity required : 1 |
||||||
|
10 |
AP8249265 - COQUE INFERIEURE; More informationQuantity required : 1 |
