Vehicle Exploded View - PIAGGIO MEDLEY 125 ABS E5 2021-2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

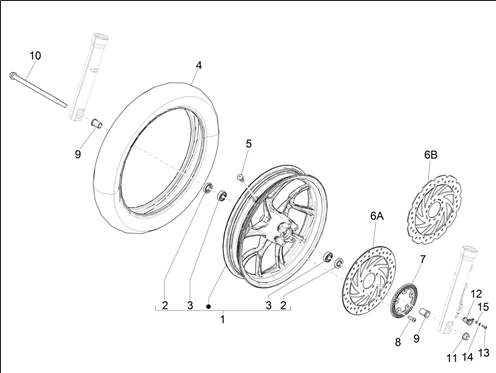

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1164/Medley_125_ABS_E5_2021-2022_(EMEA)_04.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/6/2/img/162862.jpg)
1 |
1C004417500XNM - ROUE AVANT AVEC ROULEMENTS More informationQuantity required : 1 |
||||||
1 |
1C004417500EU - ROUE AVANT AVEC ROULEMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/7/img/127507.jpg)
2 |
1C001322 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
|
4 |
FRONT TYRE 100/80-16" (CHENG SHIN / MAXXIS) "PIAGGIO GENUINE PART" 125 MEDLEY -1C001586 More informationQuantity required : 1 |
||||||
|
4 |
CM319114 - FRONT TYRE 100 80 16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
5 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
6 |
1C004550 - FRONT BRAKE DISC D 260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/6/6/img/162866.jpg)
6 |
1C004504 - FRONT BRAKE DISC D 260 More informationQuantity required : 1 |
||||||
|
7 |
1C004633 - ROUE PHONIQUE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/4/8/img/166548.jpg)
8 |
1C004053 - VIS A TETE BOMBEE TORX More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/2/img/127502.jpg)
9 |
1C001258 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/0/4/7/img/175047.jpg)
10 |
1C004473R - ARBRE DE ROUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
11 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/1/1/2/3/img/211123.jpg)
12 |
CAPTEUR ABS FREIN AVANT ORIGINE PIAGGIO 125 MEDLEY 2016> -1D0038385 More informationQuantity required : 1 |
||||||
|
12 |
CAPTEUR ABS FREIN AVANT ORIGINE PIAGGIO 125 MEDLEY 2016> -1D0038385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
13 |
880285 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
14 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.jpg)
15 |
669282 - RONDELLE More informationQuantity required : 1 |
