Vehicle Exploded View - APRILIA LEONARDO 300 (eng.Minarelli) 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

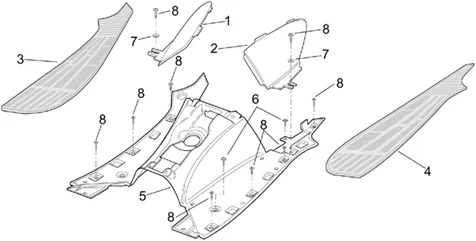

Chassis : 28.12 CARROSSERIE CENTRALE - R. PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/254/Leonardo_300_(eng.Minarelli)_02-04_28.12.PNG)
1 |
Volet latéral D gris; |
||||||
|
2 |
AP8149638 - VOLET LATERAL G GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8149639-MAT D GREY More informationQuantity required : 1 |
||||||
|
4 |
AP8149640 - TAPIS G GRIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8149635 - PLANCHER REPOSE-PIEDS GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
7 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
8 |
SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425 More informationQuantity required : 12 |
