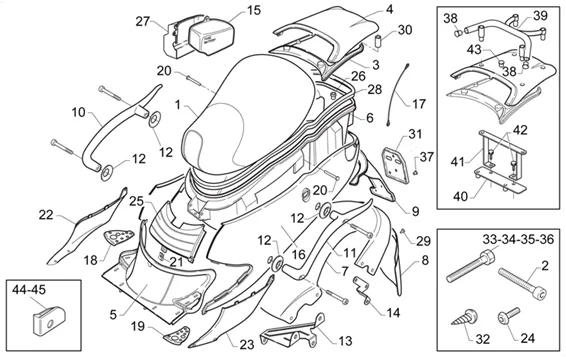

Vehicle Exploded View - APRILIA GULLIVER 50 Air 1995-1998 APRILIA

Chassis : 28.04 CARROSSERIE POSTERIEURE
Carrosserie posterieure
Search
Selle-complète grise;

1
P2R reference P2R reference
Maker reference Maker reference AP8229193

Selle-complète grise;

Selle cpl bleue;

1
P2R reference P2R reference
Maker reference Maker reference AP8229194

Selle cpl bleue;

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

2
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 5

Support coffre AR;

3
P2R reference P2R reference
Maker reference Maker reference AP8234083

Support coffre AR;

Coffre ar., vert;

4
P2R reference P2R reference
Maker reference Maker reference AP8231685

Coffre ar., vert;

Coffre ar., cuivre;

4
P2R reference P2R reference
Maker reference Maker reference AP8238400

Coffre ar., cuivre;

Coffre ar., or;

4
P2R reference P2R reference
Maker reference Maker reference AP8238431

Coffre ar., or;

Coffre ar., améthiste;

4
P2R reference P2R reference
Maker reference Maker reference AP8238663

Coffre ar., améthiste;

Coffre ar., gris;

4
P2R reference P2R reference
Maker reference Maker reference AP8238974

Coffre ar., gris;

Coffre ar., bleu;

4
P2R reference P2R reference
Maker reference Maker reference AP8238989

Coffre ar., bleu;

Coffre ar., rouge;

4
P2R reference P2R reference
Maker reference Maker reference AP8239008

Coffre ar., rouge;

Coffre ar., bleu w.

4
P2R reference P2R reference
Maker reference Maker reference AP8239625

Coffre ar., bleu w.

Couvercle bougie, gris;

5
P2R reference P2R reference
Maker reference Maker reference AP8231688

Couvercle bougie, gris;

Compart.p-casque;

6
P2R reference P2R reference
Maker reference Maker reference AP8231689

Compart.p-casque;

Garde-boue arrière gris

7
P2R reference P2R reference
Maker reference Maker reference AP8226268

Garde-boue arrière gris

Bavolet AR;

8
P2R reference P2R reference
Maker reference Maker reference AP8226329

Bavolet AR;

AP8231693 - PORTE-PLAQUE GRIS;

9
P2R reference P2R reference 58003
Maker reference Maker reference AP8231693

AP8231693 - PORTE-PLAQUE GRIS;

More information

Quantity required : 1

Poignée D grise;

10
P2R reference P2R reference
Maker reference Maker reference AP8238465

Poignée D grise;

Poignée D grise;

10
P2R reference P2R reference
Maker reference Maker reference AP8238727

Poignée D grise;

AP8238466 - POIGNEE G GRISE;

11
P2R reference P2R reference 58231
Maker reference Maker reference AP8238466

AP8238466 - POIGNEE G GRISE;

More information

Quantity required : 1

Poignée G grise;

11
P2R reference P2R reference
Maker reference Maker reference AP8238729

Poignée G grise;

Caoutchouc poignées, gris;

12
P2R reference P2R reference
Maker reference Maker reference AP8220458

Caoutchouc poignées, gris;

AP8234079 - SUPPORT G-BOUE AR;

13
P2R reference P2R reference 58051
Maker reference Maker reference AP8234079

AP8234079-BRACKET G-MUD AR

More information

Quantity required : 1

Support g-boue AR;

14
P2R reference P2R reference
Maker reference Maker reference AP8234095

Support g-boue AR;

Fermeture batterie;

15
P2R reference P2R reference
Maker reference Maker reference AP8231691

Fermeture batterie;

Queue, verte;

16
P2R reference P2R reference
Maker reference Maker reference AP8231686

Queue, verte;

Queue, cuivre;

16
P2R reference P2R reference
Maker reference Maker reference AP8238399

Queue, cuivre;

Queue, or;

16
P2R reference P2R reference
Maker reference Maker reference AP8238430

Queue, or;

Queue, améthyste;

16
P2R reference P2R reference
Maker reference Maker reference AP8238664

Queue, améthyste;

Queue, gris

16
P2R reference P2R reference
Maker reference Maker reference AP8238973

Queue, gris

Queue, bleu;

16
P2R reference P2R reference
Maker reference Maker reference AP8238988

Queue, bleu;

Queue, rouge;

16
P2R reference P2R reference
Maker reference Maker reference AP8239007

Queue, rouge;

Queue, bleu w.;

16
P2R reference P2R reference
Maker reference Maker reference AP8239578

Queue, bleu w.;

AP8201855 - CABLE COFFRE AR;

17
P2R reference P2R reference 72147
Maker reference Maker reference AP8201855

AP8201855-CABLE UNDERSEAT COMPARTMENT AR

More information

Quantity required : 1

Repose-pieds passager dte;

18
P2R reference P2R reference
Maker reference Maker reference AP8238330

Repose-pieds passager dte;

R-pied D pass. PVC

18
P2R reference P2R reference
Maker reference Maker reference AP8238550

R-pied D pass. PVC

Repose-pied D pass.g;

18
P2R reference P2R reference
Maker reference Maker reference AP8238654

Repose-pied D pass.g;

Planch dte pass.gris tr.;

18
P2R reference P2R reference
Maker reference Maker reference AP8239560

Planch dte pass.gris tr.;

Repose-pieds passager gche;

19
P2R reference P2R reference
Maker reference Maker reference AP8238331

Repose-pieds passager gche;

R-pied G pass. PVC

19
P2R reference P2R reference
Maker reference Maker reference AP8238551

R-pied G pass. PVC

Repose-pied G pass.g;

19
P2R reference P2R reference
Maker reference Maker reference AP8238655

Repose-pied G pass.g;

Planch gche pas.gris tr.;

19
P2R reference P2R reference
Maker reference Maker reference AP8239561

Planch gche pas.gris tr.;

Pivot accrochage cadenas

20
P2R reference P2R reference
Maker reference Maker reference AP8221230

Pivot accrochage cadenas

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

21
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

Fermeture inf. D queue, vert;

22
P2R reference P2R reference
Maker reference Maker reference AP8238126

Fermeture inf. D queue, vert;

Fermeture inf. D queue, cuivre;

22
P2R reference P2R reference
Maker reference Maker reference AP8238396

Fermeture inf. D queue, cuivre;

Fermeture inf. D queue, or;

22
P2R reference P2R reference
Maker reference Maker reference AP8238427

Fermeture inf. D queue, or;

Fermeture inf. D queue, améth.;

22
P2R reference P2R reference
Maker reference Maker reference AP8238669

Fermeture inf. D queue, améth.;

Fermeture inf. D queue, gris

22
P2R reference P2R reference
Maker reference Maker reference AP8238968

Fermeture inf. D queue, gris

Fermeture inf. D queue, bleu;

22
P2R reference P2R reference
Maker reference Maker reference AP8238983

Fermeture inf. D queue, bleu;

Fermeture inf. D queue, rouge;

22
P2R reference P2R reference
Maker reference Maker reference AP8238998

Fermeture inf. D queue, rouge;

Fermeture inf. D queue, bleu;

22
P2R reference P2R reference
Maker reference Maker reference AP8239553

Fermeture inf. D queue, bleu;

Fermeture inf. G queue, vert;

23
P2R reference P2R reference
Maker reference Maker reference AP8238127

Fermeture inf. G queue, vert;

Fermeture inf. G queue, cuivre;

23
P2R reference P2R reference
Maker reference Maker reference AP8238397

Fermeture inf. G queue, cuivre;

Fermeture inf. G queue, or;

23
P2R reference P2R reference
Maker reference Maker reference AP8238428

Fermeture inf. G queue, or;

Fermeture inf. G queue, améth.;

23
P2R reference P2R reference
Maker reference Maker reference AP8238670

Fermeture inf. G queue, améth.;

Fermeture inf. G queue, gris

23
P2R reference P2R reference
Maker reference Maker reference AP8238967

Fermeture inf. G queue, gris

Fermeture inf. G queue, bleu;

23
P2R reference P2R reference
Maker reference Maker reference AP8238982

Fermeture inf. G queue, bleu;

Fermeture inf. G queue, rouge;

23
P2R reference P2R reference
Maker reference Maker reference AP8238997

Fermeture inf. G queue, rouge;

Fermeture inf. G queue, bleu;

23
P2R reference P2R reference
Maker reference Maker reference AP8239554

Fermeture inf. G queue, bleu;

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

24
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 19

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

24
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 19

Fermeture queue, vert;

25
P2R reference P2R reference
Maker reference Maker reference AP8231684

Fermeture queue, vert;

Fermeture queue, cuivre;

25
P2R reference P2R reference
Maker reference Maker reference AP8238398

Fermeture queue, cuivre;

Fermeture queue, or;

25
P2R reference P2R reference
Maker reference Maker reference AP8238429

Fermeture queue, or;

Fermeture queue, améthyste;

25
P2R reference P2R reference
Maker reference Maker reference AP8238662

Fermeture queue, améthyste;

Fermeture queue, gris;

25
P2R reference P2R reference
Maker reference Maker reference AP8238975

Fermeture queue, gris;

Fermeture queue, bleu;

25
P2R reference P2R reference
Maker reference Maker reference AP8238990

Fermeture queue, bleu;

Fermeture queue, rouge;

25
P2R reference P2R reference
Maker reference Maker reference AP8239009

Fermeture queue, rouge;

Fermeture queue, bleu w.;

25
P2R reference P2R reference
Maker reference Maker reference AP8239555

Fermeture queue, bleu w.;

Crochet câble coffre;

26
P2R reference P2R reference
Maker reference Maker reference AP8220427

Crochet câble coffre;

Couvercle batterie;

27
P2R reference P2R reference
Maker reference Maker reference AP8231690

Couvercle batterie;

AP8220469 - JOINT COFFRE;

28
P2R reference P2R reference 72285
Maker reference Maker reference AP8220469

AP8220469 - JOINT COFFRE;

More information

Quantity required : 1

AP8120317 - RIVET EN PLASTIQUE NOIR

29
P2R reference P2R reference 71392
Maker reference Maker reference AP8120317

AP8120317 - RIVET EN PLASTIQUE NOIR

More information

Quantity required : 3

BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712

30
P2R reference P2R reference 71414
Maker reference Maker reference AP8120712

BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712

More information

Quantity required : 2

Support plaque;

31
P2R reference P2R reference
Maker reference Maker reference AP8234069

Support plaque;

SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421

32
P2R reference P2R reference 71879
Maker reference Maker reference AP8150421

SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421

More information

Quantity required : 7

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

33
P2R reference P2R reference 69697
Maker reference Maker reference 855799

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

34
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 3

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

35
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 2

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

36
P2R reference P2R reference 71938
Maker reference Maker reference AP8152272

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

More information

Quantity required : 8

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

37
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 2

Bouchon poignée;

38
P2R reference P2R reference
Maker reference Maker reference AP8220432

Bouchon poignée;

Poignée Arriere;

39
P2R reference P2R reference
Maker reference Maker reference AP8232952

Poignée Arriere;

Patte-sup.;

40
P2R reference P2R reference
Maker reference Maker reference AP8234099

Patte-sup.;

Int. support poignée;

41
P2R reference P2R reference
Maker reference Maker reference AP8234098

Int. support poignée;

Pommeau fileté

42
P2R reference P2R reference
Maker reference Maker reference AP8221219

Pommeau fileté

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

43
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 1

Clip D selle;

44
P2R reference P2R reference
Maker reference Maker reference AP8220441

Clip D selle;

Clip D selle;

45
P2R reference P2R reference
Maker reference Maker reference AP8220442

Clip D selle;

All the exploded views of this vehicle

Filter :
Or choose :
