Vehicle Exploded View - VESPA VESPA GTS 125 GTS 125 E5+ Classic SuperSport2024 SuperTech 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

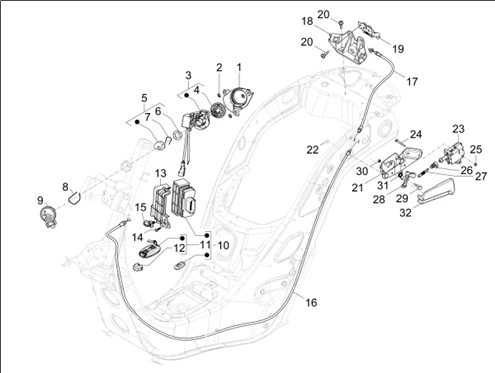

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1284/GTS_125_E5_Classic_SuperSport2024_SuperTech_2025__02.46.png)
1 |
1B011416-PLATE FOR KEYLESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
2 |
PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/7/9/img/174279.jpg)
3 |
LOCK/VERROU DE STEERING KEYLESS OEM PIAGGIO 300-400 BEVERLY 2021 >/125-300 VESPA GTS 2022 >-1D003123 More informationQuantity required : 1 |
||||||
|
4 |
1B007097 LOCK CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
5 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
6 |
WASHER DE BLOC STEERING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-298594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
7 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
8 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
|
9 |
SWITCH À CLÉ OEM PIAGGIO VESPA GTS/SPRINT/PRIMAVERA 2023 >-1D004484 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/1/0/img/201010.jpg)
10 |
KIT COMPLETE KEYLESS OEM PIAGGIO 125-300 GTS VESPA 2022 >-1D004781 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/1/1/img/201011.jpg)
11 |
CONTROL RADIOEMETTEUR WITHOUT CLE OEM PIAGGIO 125-300 GTS 2022 >-1D004008 More informationQuantity required : 1 |
||||||
|
12 |
1D004390-COVER FOR REMOTE CONTROL More informationQuantity required : 1 |
||||||
|
13 |
1B009808-CONTROL UNIT FIXING PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
14 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
15 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/6/img/95116.jpg)
16 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT (PARTIE FRONT) OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-CM012813 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/4/img/95114.jpg)
17 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT (PARTIE REAR) OEM PIAGGIO 125-250-300 VESPA GTS-CM012811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/4/7/img/81247.jpg)
18 |
BRACKET LOCK DE SEAT OEM PIAGGIO VESPA 125-250-300 GTS-57747300EB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/3/1/img/95231.jpg)
19 |
LOCK/MECANISME LATCH DE SEAT OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-CM023703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
20 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 4 |
||||||
|
21 |
577471-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
22 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
23 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
24 |
SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
25 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
26 |
GASKET OF CABLE/TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-577128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
27 |
SPRING DE LOCK OEM PIAGGIO COMMON A LA RANGE-620415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
28 |
LEVER DE LOCK OEM PIAGGIO COMMON A LA RANGE-577129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
29 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
|
30 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 1 |
||||||
|
31 |
577131-SPRING More informationQuantity required : 1 |
||||||
|
32 |
1B004649-COVER More informationQuantity required : 1 |
