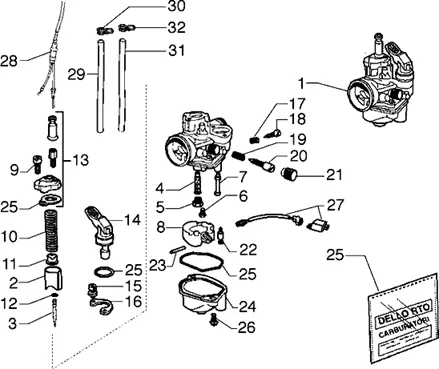

Moteur : T12 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/669/GSM_MY_2001_T12.PNG)
1 |
CARBURATEUR |
||||||
|
2 |
00F03201211-BOISSEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/7/img/64077.jpg)
3 |
CARBURETTOR NEEDLE OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK X000D, GPR 1998 > 2004-00G03201431 More informationQuantity required : 1 |
||||||
|
4 |
CM106217-MELANGEUR 211-GA More informationQuantity required : 1 |
||||||
|
5 |
00G03216031-GETTO DEL MAX. 54 ATL. IT. CAT. More informationQuantity required : 1 |
||||||
|
6 |
CM102104-GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
|
7 |
00H03203481-R-GICLEUR D ENTREE D'AIR 45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
8 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
|
9 |
00G03200061-R-BOUL. SER. COUV. CHAMBRE MEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
10 |
SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
11 |
BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
12 |
CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872 More informationQuantity required : 1 |
||||||
|
13 |
00H03202231-COVER CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/1/img/73241.jpg)
14 |
STARTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-CM146201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/2/img/64072.jpg)
15 |
00G03200541 - R-BOULON SER.START.AUTOM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/3/img/64073.jpg)
16 |
CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/4/img/64074.jpg)
17 |
SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200721 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/5/img/64075.jpg)
18 |
SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
19 |
SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/3/img/64113.jpg)
20 |
SCREW OF RALENTI OEM PIAGGIO 50 GILERA SMT, RCR, GSM, HAK, ZULU 1998 > 2005/DERBI SENDA 2005 <-00G04100131 More informationQuantity required : 1 |
||||||
|
21 |
00G04100741-R-BUTTON SCREW REGL. VALV. ESS. More informationQuantity required : 1 |
||||||
|
22 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
|
23 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/2/img/69522.jpg)
24 |
847519 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/2/img/66972.jpg)
25 |
POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409 More informationQuantity required : 1 |
||||||
|
26 |
00G03201091 - R-BOUL.SERG.VASE ESSENC. More informationQuantity required : 1 |
||||||
|
27 |
00H06000151 - KIT CHAUFFE CARBURATEUR More informationQuantity required : 1 |
||||||
|
28 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO ZULU 2005 <-00H00918171 More informationQuantity required : 1 |
||||||
|
29 |
00F00403321 - TUBE ESSENCE More informationQuantity required : 1 |
||||||
|
30 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
|
31 |
866497-FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/8/img/63918.jpg)
32 |
CLAMP HOSE D7 OEM PIAGGIO COMMON A LA RANGE-00F03710131 More informationQuantity required : 1 |
