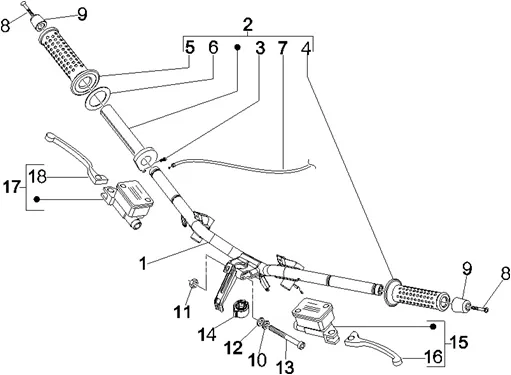

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/203/Granturismo_125_L_Potenziato_2005_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/0/8/img/75808.jpg)
1 |
HANDLEBAR OEM PIAGGIO 125-250-300 VESPA GTS 2016 <-1B001059 More informationQuantity required : 1 |
||||||
2 |
CM060950 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
3 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
4 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
5 |
REVETEMENT DE GRIP RIGHT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271453 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
6 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/3/2/img/95632.jpg)
7 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO 125 VESPA GT 1998 > 2005, VESPA GTS 2007 > 2012-CM073301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/5/img/158365.jpg)
8 |
SCREW TORX HEAD FRAISEE (6X55) HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-1B006376 More informationQuantity required : 2 |
||||||
|
8 |
SCREW TORX HEAD FRAISEE (6X55) HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-1B006376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/5/img/68465.jpg)
9 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-673243 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
10 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
11 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
12 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
13 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/2/5/img/81825.jpg)
14 |
BUSH CLAMP UPPER DE FORK OEM PIAGGIO 125-300 VESPA GTS/50 RUNNER-582828 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/8/img/72988.jpg)
15 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO 125-300 VESPA GTS WITHOUT ABS 2016 <, 50 NRG POWER 2005/GILERA 50 RUNNER 2005-CM074801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
16 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/9/img/72989.jpg)
17 |
BRAKE MASTER CYLINDER FRONT HENG-TONG WITHOUT ABS OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA SPRINT, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER/GILERA 50-125 RUNNER-CM074901 More informationQuantity required : 1 |
||||||
|
18 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
