Vehicle Exploded View - VESPA VESPA GT 125 Granturismo 125 L E3 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

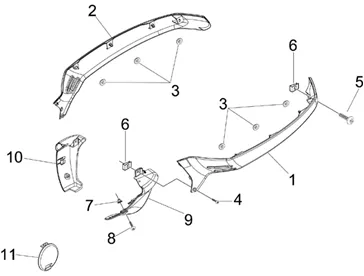

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/202/Granturismo_125_L_E3_2006_02.32.PNG)
1 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO RAW TO BE PAINTED -577393- More informationQuantity required : 1 |
||||||
|
1 |
57739300DE - FLANC GAUCHE GTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/9/8/img/81198.jpg)
1 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 GT GREY 738/A -57739300F2- More informationQuantity required : 1 |
||||||
|
1 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO PRUNE 146 -57739300F3- More informationQuantity required : 1 |
||||||
|
1 |
57739300ND - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
BAS BODY PANEL RIGHT OEM PIAGGIO VESPA 125 GRANTURISMO UNPAINTED READY TO PAINT-577394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/1/1/img/81211.jpg)
2 |
BAS D'AILE RIGHT OEM PIAGGIO 125 GT BLUE 222/A-57739400DE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/1/3/img/81213.jpg)
2 |
PROTECTOR SIDE RIGHT OEM PIAGGIO 125 GT 2006 < GREY 738/A-57739400F2 More informationQuantity required : 1 |
||||||
|
2 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO PRUNE 146 -57739400F3- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/1/5/img/81215.jpg)
2 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GT BLACK 79/A -57739400ND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
3 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 6 |
||||||
|
4 |
574646 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/7/9/7/img/73797.jpg)
5 |
SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-014754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
7 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/1/1/img/153211.jpg)
9 |
COVER/EXTREMITE DE SPOILER LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 < UNPAINTED-1B000591 More informationQuantity required : 1 |
||||||
|
9 |
COVER/EXTREMITE DE SPOILER LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 < UNPAINTED-1B000591 More informationQuantity required : 1 |
||||||
|
9 |
LEFT SPOILER- "PIAGGIO GENUINE PART" VESPA 125-250-300 GTS BLEU 222/A -57747300DE- More informationQuantity required : 1 |
||||||
|
9 |
57747300F2-EMBOUT SPOILER More informationQuantity required : 1 |
||||||
|
9 |
COVER/EXTREMITE DE SPOILER LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 < UNPAINTED-1B000591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/8/0/img/81280.jpg)
9 |
FAIRING SPOILER LATERAL LEFT OEM PIAGGIO 125-250-300 VESPA GTS BLACK 79/A-57747300ND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/6/1/img/140061.jpg)
10 |
COVER/EXTREMITE DE SPOILER RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2022 < UNPAINTED-1B003904 More informationQuantity required : 1 |
||||||
|
10 |
SPOILER RIGHT TERMINAL "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLUE 222/A -57747400DE- More informationQuantity required : 1 |
||||||
|
10 |
57747400F3 - EMBOUT SPOILER DR. GS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/3/img/81223.jpg)
11 |
CAP DE DEFLECTOR/SPOILER OEM PIAGGIO 125-300 GTS VESPA-577405000C More informationQuantity required : 2 |
||||||
|
11 |
5774050043-CAP SPOILER More informationQuantity required : 2 |
All the exploded views of this vehicle
-
