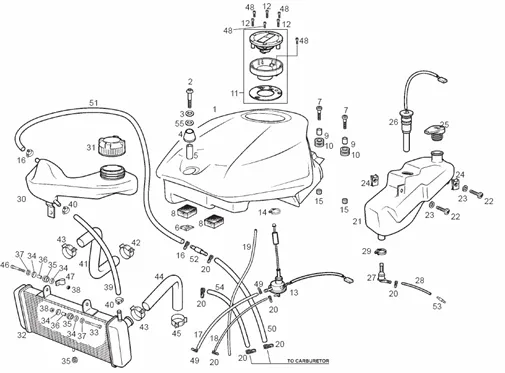

Vehicle Exploded View - DERBI GPR 50 cc REPLICA PESEK 2007 E2

	P2R reference	193723
	Maker reference	20H00409011

20H00409011 - DPSTO.GASOLINA BLNC.P/P GPR 04

	P2R reference	63668
	Maker reference	000080645005

SCREW BTR HEAD BOMBEE (6X45) OEM PIAGGIO COMMON A LA RANGE-00008064500

	P2R reference	63595
	Maker reference	000000310705

WASHER PLATE (7, 3X13, 8) OEM PIAGGIO COMMON A LA RANGE-MM00000031070

	P2R reference	64245
	Maker reference	00H00402581

00H00402581 - PUFFER

	P2R reference	64546
	Maker reference	00H01504051

SPACER MOUNTING TANK OEM APRILIA 50 RS 2006 > 2010-00H01504051

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	41728
	Maker reference	890512

GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512

	P2R reference	63958
	Maker reference	00G01001821

BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-00G01001821

	P2R reference	64248
	Maker reference	00H00403581

RUBBER OEM PIAGGIO COMMON A LA RANGE-00H00403581

	P2R reference	64244
	Maker reference	00H00402131

00H00402131-ENS. CAP RESERV. FUEL V. B

	P2R reference	63615
	Maker reference	000020530515

SCREW FLANGE BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-00002053051

	P2R reference	65059
	Maker reference	00H10408181

ROBINET FUEL OEM PIAGGIO APRILIA 50 RS 2006 > 2011-00H10408181

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	64895
	Maker reference	00H04400711

00H04400711 - ECROU

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64254
	Maker reference	00H00406321

00H00406321 - TUYAU

	P2R reference	193499
	Maker reference	00G06201061

00G06201061 - TUYAU

	P2R reference	65028
	Maker reference	00H06202061

00H06202061-HOSE

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501

	P2R reference	64829
	Maker reference	00H03706081

TANK OIL OEM DERBI 50 GPR 2006 > 2008-00H03706081

	P2R reference	63753
	Maker reference	000920635145

00092063514-SCREW

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	64821
	Maker reference	00H03702061

CAP DE TANK OIL OEM PIAGGIO GILERA 125 SC/APRILIA 50 RS 2006 > 2010-00H03702061

	P2R reference	64825
	Maker reference	00H03704051

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 125 SC -00H03704051

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	64808
	Maker reference	00H03700111

HOSE D'HUILE ENTRE ROBINET ET PUMP OEM PIAGGIO APRILIA 50 RS, RX, SX 2006 > 2010-00H03700111

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	64862
	Maker reference	00H03803501

VASE EXPANSION OEM PIAGGIO APRILIA 50 RS 2006 > 2010/GILERA 125 SC-00H03803501

	P2R reference	64858
	Maker reference	00H03802472

CAP DE TANK LIQUIDE COOLING OEM DERBI 50 SENDA 2004 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-00H03802472

	P2R reference	193500
	Maker reference	86201R

86201R - RADIATEUR

	P2R reference	63619
	Maker reference	000020640115

00002064011 - VIS

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	64861
	Maker reference	00H03803491

00H03803491-HOSE

	P2R reference	64850
	Maker reference	00H03801701

00H03801701-CLAMP

	P2R reference	64869
	Maker reference	00H03807041

DURIT DU RADIATOR AU TANK OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H03807041

	P2R reference	64852
	Maker reference	00H03801751

CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751

	P2R reference	64855
	Maker reference	00H03802091

00H03802091 - COLLIER

	P2R reference	64877
	Maker reference	00H03813021

00H03813021 - TUYAU

	P2R reference	64860
	Maker reference	00H03802751

00H03802751-CLAMP

	P2R reference	63573
	Maker reference	000000046455

00000004645-SCREW

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	63613
	Maker reference	000020512515

00002051251-SCREW A HEAD CREUSE 5M80X12 N

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64853
	Maker reference	00H03801961

HOSE COOLING DU CYLINDER AU CARBU OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2006 >/APRILIA 50 SX, RX, RS-00H03801961

	P2R reference	64870
	Maker reference	00H03807491

00H03807491 - TUYAU

	P2R reference	64841
	Maker reference	00H03800861

00H03800861-FITTING HOSE

	P2R reference	64098
	Maker reference	00G03701031

00G03701031 - RACCORD ENTREE DIHUILE

	P2R reference	64853
	Maker reference	00H03801961

HOSE COOLING DU CYLINDER AU CARBU OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2006 >/APRILIA 50 SX, RX, RS-00H03801961

	P2R reference	63640
	Maker reference	000035153705

WASHER RUBBER (7. 5X14X3) OEM PIAGGIO COMMON A LA RANGE-00003515370
