Vehicle Exploded View - DERBI GPR 50 R 1997-2000 EXPORT
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

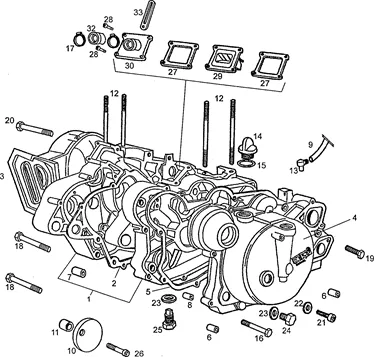

Moteur : 19 CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1116/GPR_50_R_1997-2000_EXPORT_19.png)
1 |
00H03011631 - ENSEMBLE DES CARTERS MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/5/img/64745.jpg)
2 |
CENTRAL CRANKCASE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1997>2003 -00H03000031 More informationQuantity required : 1 |
||||||
|
3 |
00H03005241 - COUVERCLE CARTER GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
00H03000641 - R-CTO.TAPA CARTER DR.C/TAPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/7/img/64747.jpg)
5 |
GASKET OF CASING CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 1998 > 2003/DERBI SENDA 2005 <-00H03000141 More informationQuantity required : 1 |
||||||
|
6 |
00H03000831 - CENTRAGE CARTER More informationQuantity required : 1 |
||||||
|
7 |
00H03010361 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
8 |
PION DE CENTRAGE CASING OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 RS, SX, RX-847241 More informationQuantity required : 1 |
||||||
|
9 |
AP8220402-HOSE More informationQuantity required : 1 |
||||||
|
10 |
00H06400161 - PLAQUE PROTECTION HUILE MOTEUR More informationQuantity required : 1 |
||||||
|
11 |
00H06400171 - CASQ.SEP.PLACA PROT.ACTE.GPR50 More informationQuantity required : 1 |
||||||
|
12 |
00003130050 - GOUJON DE FIXE CYLINDRE More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/9/img/69459.jpg)
14 |
CAP REMPLISSAGE OIL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-8470875 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
15 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/6/7/img/64067.jpg)
16 |
SCREW - FOR CRANKCASE (M6 100X40) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03002091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
17 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/6/img/64746.jpg)
18 |
SCREW FLANGE TH (6X50) OEM PIAGGIO COMMON A LA RANGE-00H03000091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
19 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
20 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
21 |
SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
22 |
WASHER PLATE (6X10, 5X1) OEM PIAGGIO COMMON A LA RANGE-847239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/6/img/69506.jpg)
23 |
GASKET VIDANGE OEM PIAGGIO 350 BEVERLY, X10/GILERA 50 SMT, RCR/DERBI SENDA 50 2000 >/APRILIA 50 SX, RX, RS-847238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/5/8/img/204758.jpg)
24 |
CAP DE VIDANGE OEM PIAGGIO 350-400 MP3, BEVERLY, X10/GILERA 50 SMT/DERBI 50 SENDA/APRILIA 50 RS-1A021939 More informationQuantity required : 1 |
||||||
|
24 |
CAP DE VIDANGE OEM PIAGGIO 350-400 MP3, BEVERLY, X10/GILERA 50 SMT/DERBI 50 SENDA/APRILIA 50 RS-1A021939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/5/img/69505.jpg)
25 |
CAP DE VIDANGE OIL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >, RS4 2011 >-8472376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
26 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
26 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/1/img/69461.jpg)
27 |
GASKET OF REED VALVE OEM PIAGGIO GILERA 50 SMT, RCR2006 > 2017/DERBI 50 SENDA 2000 > 2017/APRILIA 50 SX, RX, RS 2006 > 2017-847091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
28 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/7/img/149117.jpg)
29 |
CLAPET 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >/DERBI 50 SENDA 2006 >-1A003630 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/9/img/149169.jpg)
30 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS, SX, RX 2006 > 2017-1A010664 More informationQuantity required : 1 |
||||||
|
30 |
00H02506061-MANIFOLD D'ADMISSION More informationQuantity required : 1 |
||||||
|
30 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS, SX, RX 2006 > 2017-1A010664 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
31 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 1 |
||||||
|
31 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/5/2/img/70352.jpg)
32 |
SLEEVE D'ADMISSION OEM PIAGGIO 50 APRILIA RS 2006 >, RS4 2011 >, SX, RX 2006 >/DERBI SENDA 2000 >/GILERA SMT 2006 >, RCR 2006 >-871319 More informationQuantity required : 1 |
||||||
|
33 |
00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B More informationQuantity required : 1 |
