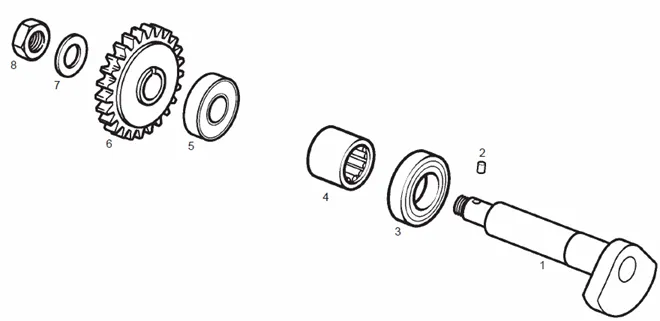

Vehicle Exploded View - DERBI GPR 50 2T E2 2009-2010 (EMEA) DERBI

Moteur : 21 CONTREPOIDS
Contrepoids
Search
SHAFT EQUILIBRAGE ENGINE OEM PIAGGIO 50 APRILIA RS 2006 > 2010, RS4 2011 >-847050

1
P2R reference P2R reference 69433
Maker reference Maker reference 847050

SHAFT EQUILIBRAGE ENGINE OEM PIAGGIO 50 APRILIA RS 2006 > 2010, RS4 2011 >-847050

More information

Quantity required : 1

SPINDLE ROLLER DE CONTROL SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847213

2
P2R reference P2R reference 69486
Maker reference Maker reference 8472136

SPINDLE ROLLER DE CONTROL SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847213

More information

Quantity required : 1

OIL SEAL (18X30X6) SHAFT EQUILIBRAGE OEM PIAGGIO 50 APRILIA RS 2006 > 2010, RS4 2011 >/DERBI GPR 2006 > 2013-847017

3
P2R reference P2R reference 69411
Maker reference Maker reference 847017

OIL SEAL (18X30X6) SHAFT EQUILIBRAGE OEM PIAGGIO 50 APRILIA RS 2006 > 2010, RS4 2011 >/DERBI GPR 2006 > 2013-847017

More information

Quantity required : 1

CAGE A AIGUILLE SHAFT EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 > 2010, RS-4 2011 >-847013

4
P2R reference P2R reference 69409
Maker reference Maker reference 847013

CAGE A AIGUILLE SHAFT EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 > 2010, RS-4 2011 >-847013

More information

Quantity required : 1

BEARING (12X32X10) DE REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX, RS 2006-847016

5
P2R reference P2R reference 69410
Maker reference Maker reference 847016

BEARING (12X32X10) DE REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX, RS 2006-847016

More information

Quantity required : 1

GEAR SHAFT D'EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 > 2010, RS-4 2011 >-8470495

6
P2R reference P2R reference 69432
Maker reference Maker reference 8470495

GEAR SHAFT D'EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 > 2010, RS-4 2011 >-8470495

More information

Quantity required : 1

WASHER D'ENGRENAGE SHAFT D'EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 >-847276

7
P2R reference P2R reference 69515
Maker reference Maker reference 847276

WASHER D'ENGRENAGE SHAFT D'EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 >-847276

More information

Quantity required : 1

NUT (10X1. 50) SERRAGE SPROCKET SHAFT EQUILIBRAGE OEM PIAGGIO APRILIA 50-125 RS, 125 RX, SX-847275

8
P2R reference P2R reference 69514
Maker reference Maker reference 847275

NUT (10X1. 50) SERRAGE SPROCKET SHAFT EQUILIBRAGE OEM PIAGGIO APRILIA 50-125 RS, 125 RX, SX-847275

More information

Quantity required : 1
