Vehicle Exploded View - DERBI GP1 50 Open 2ver E2 2006-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

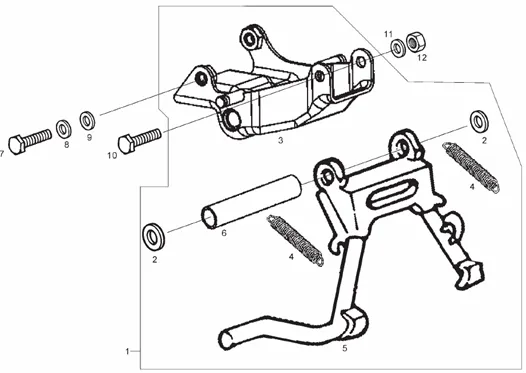

Châssis - parties plastiques - carrosseries : 3 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1153/GP1_50_Open_2ver_E2_2006-2009_(EMEA)_3.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/2/img/67222.jpg)
1 |
CENTRE STAND OEM PIAGGIO 50 NRG 1998 >/GILERA 50 STALKER 1998 > 2011, RUNNER 2005-581537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/2/img/66102.jpg)
2 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/1/img/66121.jpg)
3 |
BRACKET DE CENTRE STAND OEM PIAGGIO 50 TYPHOON, STALKER-272929 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/3/img/66143.jpg)
4 |
SPRING DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-278940 More informationQuantity required : 1 |
||||||
|
5 |
CENTRE STAND OEM PIAGGIO 50 NRG 1998 >/GILERA 50 STALKER 1998 > 2011, RUNNER 2005-581537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/7/img/67287.jpg)
6 |
SHAFT OF CENTRE STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-583603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/1/img/63701.jpg)
7 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-00012083001 More informationQuantity required : 1 |
||||||
8 |
00000033080-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/4/6/img/63946.jpg)
9 |
WASHER PLATE (8. 6X20X2. 5) OEM PIAGGIO COMMON A LA RANGE-00G00803101 More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
|
11 |
00000033080-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/2/img/63762.jpg)
12 |
00232080021 - ECROU More informationQuantity required : 1 |
