Vehicle Exploded View - PIAGGIO FLY 50 4T 4V 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

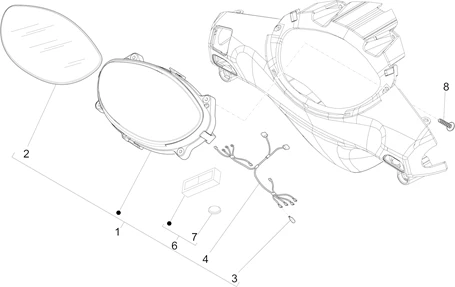

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/69/Fly_50_4T_4V_2012-2013_03.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/5/5/3/img/86553.jpg)
1 |
SPEEDOMETER "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>2017 -643226 More informationQuantity required : 1 |
||||||
2 |
643421 - VERRE COMPTEUR More informationQuantity required : 1 |
||||||
|
3 |
643269 - AMPOULE 12V More informationQuantity required : 8 |
||||||
|
4 |
643251 - CABLES GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/4/7/img/92147.jpg)
6 |
680132 - HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
6 |
DIGITAL CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, X7/APRILIA 125-250-300 ATLANTIC, LEONARDO -AP8212406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
7 |
BATTERY FOR CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998>2004/GILERA 50 STALKER -498342 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/1/0/img/96310.jpg)
8 |
CM180702 - VIS More informationQuantity required : 4 |
