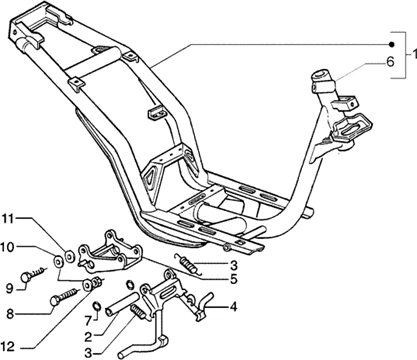

Vehicle Exploded View - PIAGGIO FLY 50 2T 1998-2005 PIAGGIO

Châssis : T19 CHASSIS-BEQUILLE
Chassis-bequille
Search
6219505 - CHASSIS FLY 50, 50 4T, 125/150 4T

1
P2R reference P2R reference 84150
Maker reference Maker reference 6219505

6219505 - CHASSIS FLY 50, 50 4T, 125/150 4T

More information

Quantity required : 1

CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc -583603

2
P2R reference P2R reference 67287
Maker reference Maker reference 583603

CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -583603

More information

Quantity required : 1

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940

3
P2R reference P2R reference 66143
Maker reference Maker reference 278940

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940

More information

Quantity required : 2

CENTER STAND "PIAGGIO GENUINE PART" 50 FLY 2T 2000>2007 -601377

4
P2R reference P2R reference 67482
Maker reference Maker reference 601377

CENTER STAND "PIAGGIO GENUINE PART" 50 FLY 2T 2000>2007 -601377

More information

Quantity required : 1

CENTRAL STAND SUPPORT -272929

5
P2R reference P2R reference 66121
Maker reference Maker reference 272929

CENTRAL STAND SUPPORT -272929

More information

Quantity required : 1

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604

6
P2R reference P2R reference 66306
Maker reference Maker reference 298604

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604

More information

Quantity required : 1

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 stroke -271695

7
P2R reference P2R reference 66102
Maker reference Maker reference 271695

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -271695

More information

Quantity required : 2

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -030080

8
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -030080

More information

Quantity required : 1

031122 - BOULON FIX BRAS

9
P2R reference P2R reference 65649
Maker reference Maker reference 0311225

031122 - BOULON FIX BRAS

More information

Quantity required : 2

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

10
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

More information

Quantity required : 3

MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861

11
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861

More information

Quantity required : 2

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108

12
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108

More information

Quantity required : 1
