Vehicle Exploded View - APRILIA ETX 150 2014 APRILIA

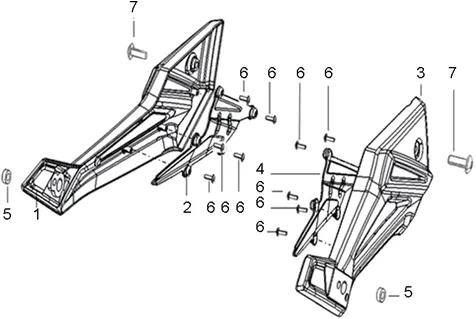

Telaio : 01.03 TAPIS DE REPOSE-PIEDS PILOTE
Tapis de repose-pieds pilote
Search
Tapis G.

1
P2R reference P2R reference
Maker reference Maker reference RB000206

Tapis G.

GARDE BOUE

2
P2R reference P2R reference
Maker reference Maker reference RB000208

GARDE BOUE

Tapis D.

3
P2R reference P2R reference
Maker reference Maker reference RB000192

Tapis D.

Garde boue

4
P2R reference P2R reference
Maker reference Maker reference RB000210

Garde boue

Entretoise

5
P2R reference P2R reference
Maker reference Maker reference RB000211

Entretoise

SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727

6
P2R reference P2R reference 65387
Maker reference Maker reference 0157275

SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727

More information

Quantity required : 6

Vis

7
P2R reference P2R reference
Maker reference Maker reference RB000577

Vis
