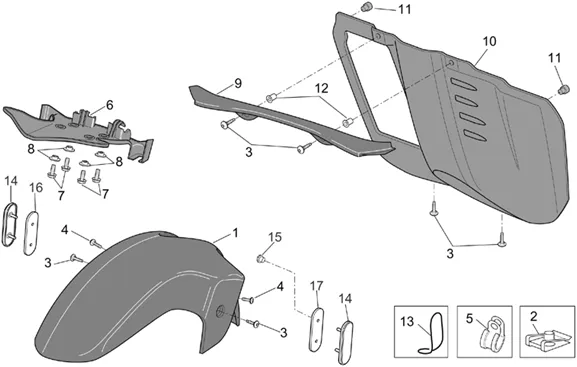

Chassis : 28.13 CARROSSERIE AV. III - STANDARD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/293/ETV_1000_Capo_Nord_2001-2003_28.13.PNG)
1 |
Garde-boue av.gris; |
|||||||||
|
1 |
AP8126997 - GARDE-BOUE AV; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8126703 - GARDE-BOUE AV.GRIS; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8126998 - GARDE-BOUE AV; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
2 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
3 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 6 |
|||||||||
|
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
4 |
SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799 More informationQuantity required : 2 |
|||||||||
|
5 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 2 |
|||||||||
|
6 |
AP8149292 - FERMETURE INF.NOIRE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 4 |
|||||||||
|
8 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 4 |
|||||||||
|
9 |
AP8139628 - SPOILER RADIATEUR GRIS; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/6/1/img/48961.jpg)
10 |
LEG SHIELD DE CASING GREY OEM PIAGGIO 1000 CAPONORD APRILIA 2001 > 2007-AP8134552 More informationQuantity required : 1 |
|||||||||
|
10 |
AP8158632 - TABLIER DE CARTER GRIS; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
11 |
BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
12 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/9/img/72299.JPG)
13 |
GUIDE CABLE OEM PIAGGIO/APRILIA COMMON A LA RANGE-AP8221150 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
14 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 2 |
|||||||||
|
15 |
AP8121575 - ECROU More informationQuantity required : 4 |
|||||||||
|
16 |
AP8148588 - SUPPORT CATAD.AV.D.; More informationQuantity required : 1 |
|||||||||
|
17 |
AP8148589-BRACKET CATAD. AV. G. More informationQuantity required : 1 |
|||||||||
