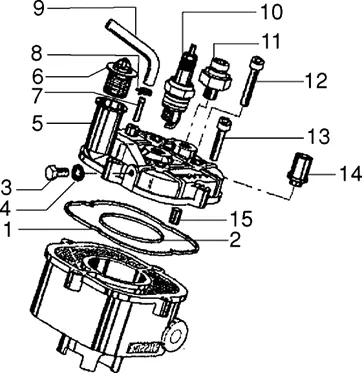

Moteur : T5 TAMBOUR SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/673/Eaglet_1998-2005_T5.PNG)
1 |
ROULEAU |
||||||
|
2 |
ROULEAU |
||||||
|
3 |
DISQUE ARRET VITESSE |
||||||
|
4 |
RONDELLE D'ARRET |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
RESSORT |
||||||
|
8 |
LEVIER ARRET VITESSE |
||||||
|
9 |
316144-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/8/img/63808.jpg)
10 |
CLIPS/CIRCLIPS (7. 3) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-006408 More informationQuantity required : 1 |
||||||
|
11 |
RESSORT |
||||||
|
12 |
SELECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/1/3/img/93613.jpg)
13 |
SPRING SHAFT OF SELECTEUR OEM PIAGGIO APRILIA 50 GSM, HAK, EAGLET-942114 More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/9/img/63809.jpg)
15 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-0064096 More informationQuantity required : 1 |
||||||
|
16 |
AXE EMBREYAGE |
||||||
|
17 |
3164214 - FOURCHETTE More informationQuantity required : 2 |
||||||
|
18 |
411025 - DESMODROMIQUE More informationQuantity required : 1 |
||||||
|
19 |
JOINT PARE HUILE |
||||||
|
20 |
AXE |
||||||
|
21 |
FOURCHETTE 5/6 |
