Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2017 (EMEA LATAM) APRILIA

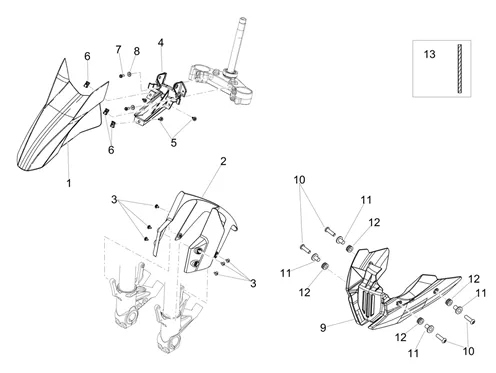

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
Garde-boue Av.-Embasement
Search
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 900 DORSODURO -2H001993-

1
P2R reference P2R reference 146051
Maker reference Maker reference 2H001993

GUARD-MUD FRONT OEM PIAGGIO APRILIA 900 DORSODURO-2H001993

More information

Quantity required : 1

SOCLE DE GUARD-MUD FRONT OEM PIAGGIO APRILIA 750-900-1200 DORSODURO-856850

2
P2R reference P2R reference 40234
Maker reference Maker reference 856850

SOCLE DE GUARD-MUD FRONT OEM PIAGGIO APRILIA 750-900-1200 DORSODURO-856850

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

3
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

More information

Quantity required : 6

BRACKET DE FRONT MUDGUARD OEM PIAGGIO APRILIA 750-900-1200 DORDODURO-856604

4
P2R reference P2R reference 40134
Maker reference Maker reference 856604

BRACKET DE FRONT MUDGUARD OEM PIAGGIO APRILIA 750-900-1200 DORDODURO-856604

More information

Quantity required : 1

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

5
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 3

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

5
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 3

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

6
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 3

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

7
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 2

WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053

8
P2R reference P2R reference 72597
Maker reference Maker reference AP9100053

WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053

More information

Quantity required : 2

SPOILER OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO-859793

9
P2R reference P2R reference 40679
Maker reference Maker reference 859793

SPOILER OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO-859793

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

10
P2R reference P2R reference 72330
Maker reference Maker reference AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

More information

Quantity required : 4

BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795

11
P2R reference P2R reference 71485
Maker reference Maker reference AP8121795

BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795

More information

Quantity required : 4

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600

12
P2R reference P2R reference 71276
Maker reference Maker reference AP8112600

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600

More information

Quantity required : 4

ADHESIF MOUSSE ORGINE APRILIA COMMON A LA RANGE-860447

13
P2R reference P2R reference 40925
Maker reference Maker reference 860447

ADHESIF MOUSSE ORGINE APRILIA COMMON A LA RANGE-860447

More information

Quantity required : 2
