Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 1992-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

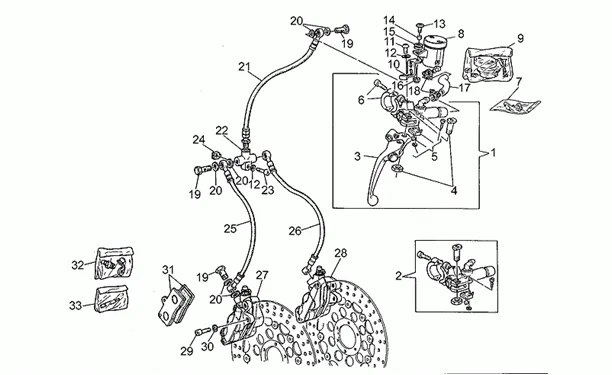

Chassis : 33.11 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_33.11.PNG)
1 |
|
||||||
|
2 |
GU37660105 - MAIT.CYL.FREIN AV More informationQuantity required : 1 |
||||||
|
3 |
GU37605605 - LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
|
4 |
GU27604815-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
5 |
CONTACTEUR BRAKE FRONT OEM MOTO GUZZI COMMON A LA RANGE 2005 <-GU30749860 More informationQuantity required : 1 |
||||||
|
6 |
Cavalier |
||||||
|
7 |
GU19659500-GR. REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
8 |
GU30665000 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/1/5/img/130915.jpg)
9 |
COVER TANK BRAKE FLUID FRONT OEM PIAGGIO MOTO-GUZZI 1000 LE-MANS, STRADA, GT, DAYTONA, 1100 SPORT, V11, CALIFORNIA-GU30661100 More informationQuantity required : 1 |
||||||
|
10 |
Etrier support réservoir |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
11 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
12 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
13 |
GU98230616-SCREW More informationQuantity required : 1 |
||||||
|
14 |
GU91180607 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
15 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 1 |
||||||
|
16 |
GU92630206-NUT M6X1 More informationQuantity required : 1 |
||||||
|
17 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
18 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
|
19 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
20 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 10 |
||||||
|
21 |
GU30657100 - TUYAU HUILE More informationQuantity required : 1 |
||||||
|
22 |
GU31656860-REPARTITEUR More informationQuantity required : 1 |
||||||
|
23 |
Vis |
||||||
|
24 |
GU92660601-NUT EN CAGE More informationQuantity required : 1 |
||||||
|
25 |
GU30658800 - TUYAU HUILE AV D. More informationQuantity required : 1 |
||||||
|
26 |
GU30658801-HOSE OIL AV G. More informationQuantity required : 1 |
||||||
|
27 |
GU30652302 - MACHOIRE FREIN AV D OR More informationQuantity required : 1 |
||||||
|
28 |
GU30652202 - MACHOIRE FREIN AV G OR More informationQuantity required : 1 |
||||||
|
29 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
30 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 4 |
||||||
|
31 |
GU30654600 - PLAQUETTES AV-PAIRE More informationQuantity required : 2 |
||||||
|
32 |
GU30659200-PURGE + CAPUCHON More informationQuantity required : 2 |
||||||
|
33 |
GU30659102-KIT PLAQUETTES More informationQuantity required : 2 |
