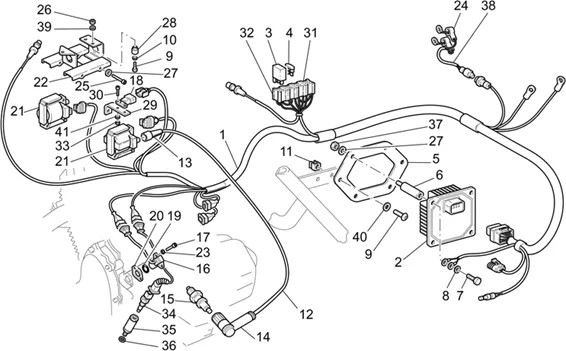

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002

	P2R reference	166020
	Maker reference	GU03725830

GU03725830 - CABLES INJECTION

	P2R reference	128283
	Maker reference	GU03729565

GU03729565-UNITE CDI

	P2R reference	101965
	Maker reference	GU01732530

GU01732530 - RELE SIEMENS A302B1005

	P2R reference	130283
	Maker reference	GU28742559

GU28742559-FUSIBLE 10A

	P2R reference	130282
	Maker reference	GU28742558

GU28742558 - FUSIBLE 5A

	P2R reference	128280
	Maker reference	GU03729230

GU03729230-PLATE

	P2R reference	132590
	Maker reference	GU93221330

GU93221330-BLOC

	P2R reference	132922
	Maker reference	GU98084110

GU98084110-SCREW M4X10

	P2R reference	132686
	Maker reference	GU95008304

GU95008304-WASHER

	P2R reference	133176
	Maker reference	GU98682310

GU98682310-SCREW

	P2R reference	132713
	Maker reference	GU95100141

GU95100141-WASHER 6, 5X20X2

	P2R reference	132542
	Maker reference	GU92660601

GU92660601-NUT EN CAGE

	P2R reference	128276
	Maker reference	GU03718350

HIGH TENSION PLUG LEAD "PIAGGIO GENUINE PART" (LONG) MOTO-GUZZI 1100 CALIFORNIA -GU03718350

	P2R reference	129281
	Maker reference	GU14717600

CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600

	P2R reference	128275
	Maker reference	GU03717450

ANTIPARASITE (EQUIVALENT LB05E) OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-GU03717450

	P2R reference	130935
	Maker reference	GU30717061

SPARK PLUG BPR6ES OEM PIAGGIO COMMON A LA RANGE-GU30717061

	P2R reference	101947
	Maker reference	GU01721600

SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600

	P2R reference	73575
	Maker reference	GU98682212

SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212

	P2R reference	73466
	Maker reference	GU30729330

DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330

	P2R reference	69479
	Maker reference	847180

O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180

	P2R reference	101948
	Maker reference	GU01722700

GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700

	P2R reference	101949
	Maker reference	GU01722701

GU01722701-GUARNIZIONE 0, 4MM

	P2R reference	101950
	Maker reference	GU01722702

GU01722702-GUARNIZIONE 0, 6MM

	P2R reference	101952
	Maker reference	GU01722704

GASKET SENSOR PHASE/TOURS (1MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722704

	P2R reference	130439
	Maker reference	GU29722760

GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760

	P2R reference	101953
	Maker reference	GU01722705

GU01722705-GUARNIZIONE 1, 5MM

	P2R reference	101951
	Maker reference	GU01722703

GASKET SENSOR PHASE/TOURS (0. 8MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722703

	P2R reference	130933
	Maker reference	GU30716500

BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500

	P2R reference	130272
	Maker reference	GU28716748

GU28716748 - SUPPORT BOBINE ALL.

	P2R reference	132681
	Maker reference	GU95008205

WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205

	P2R reference	130982
	Maker reference	GU30759600

GU30759600-CAPUCHON

	P2R reference	133174
	Maker reference	GU98682125

GU98682125-SCREW M4X25

	P2R reference	71812
	Maker reference	AP8150026

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026

	P2R reference	71812
	Maker reference	GU92606206

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026

	P2R reference	132695
	Maker reference	GU95021204

GU95021204-WASHER

	P2R reference	73551
	Maker reference	GU93222023

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023

	P2R reference	130942
	Maker reference	GU30728230

GU30728230-BRACKET DETECTEUR

	P2R reference	133149
	Maker reference	GU98680110

GU98680110-SCREW

	P2R reference	130945
	Maker reference	GU30732200

GU30732200-BOX A FUSIBLES

	P2R reference	130946
	Maker reference	GU30732400

GU30732400-BRACKET RELAIS

	P2R reference	132482
	Maker reference	GU92606003

GU92606003 - ECROU M3

	P2R reference	130446
	Maker reference	GU29729461

SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461

	P2R reference	102511
	Maker reference	GU03163330

BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330

	P2R reference	132682
	Maker reference	GU95008210

WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210

	P2R reference	132503
	Maker reference	GU92630204

GU92630204-NUT

	P2R reference	128291
	Maker reference	GU03738500

GU03738500-WIRING PUMP FUEL

	P2R reference	73555
	Maker reference	GU95008306

GU95008306-WASHER 6, 4X12X1, 2

	P2R reference	102376
	Maker reference	GU03013800

WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800

	P2R reference	132743
	Maker reference	GU95120033

GU95120033-SCREW
