Vehicle Exploded View - MOTO-GUZZI BREVA 1100 Breva V IE 1100 2005-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

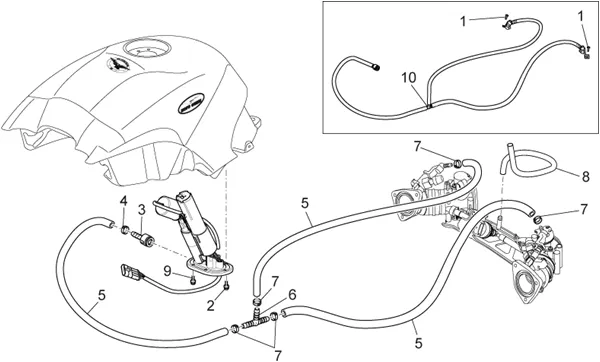

Chassis : 33.25 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/468/Breva_V_IE_1100_2005-2007_33.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
1 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/7/img/73407.jpg)
3 |
FITTING ALIMENTATION FUEL OEM PIAGGIO MOTO-GUZZI 1100 BREVA, CALIFORNIA, V11, 940 BELLAGIO-GU01106692 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
4 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/4/img/71744.jpg)
5 |
FUEL HOSE (6X13) "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007, FUTURA, RSV-2 1998>2008, TUONO V2 2002>2009/MOTO-GUZZI 750-1100 BREVA 2003>2009,1100 GRISO 2005>2008 -AP8144069 More informationQuantity required : 3 |
||||||
6 |
AP8120116-" FITTING EN " " Y " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
7 |
AP8102239-CLAMP CLIC More informationQuantity required : 5 |
||||||
|
8 |
GU05135930 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
9 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 2 |
||||||
|
10 |
FUEL HOSE OEM PIAGGIO MOTO-GUZZI 850-1200 BREVA, NORGE, 1200 SPORT-977149 More informationQuantity required : 1 |
