Vehicle Exploded View - MOTO-GUZZI BREVA 1200 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

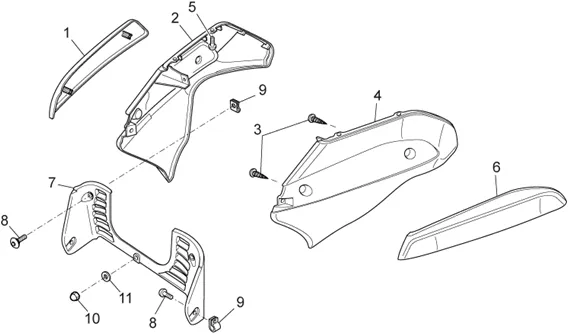

Chassis : 33.14 CARROSSERIE AV. - CONVOYEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/464/Breva_1200_2007_33.14.PNG)
1 |
GU05576631-PROTECT. DTE * More informationQuantity required : 1 |
|||||||||
|
2 |
GU05576230-FAIRING SIDE D. BRUTE More informationQuantity required : 1 |
|||||||||
|
2 |
GU05576231-FAIRING SIDE D. TECHNOGREY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
|||||||||
|
4 |
GU05576330-FAIRING SIDE G. BRUTE More informationQuantity required : 1 |
|||||||||
|
4 |
GU05576331 - CARENE LATERALE G.TECHNOGREY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
5 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 6 |
|||||||||
|
6 |
GU05576731-PROTECT. GCHE * More informationQuantity required : 1 |
|||||||||
|
7 |
GU05476430-GRILLE DE RADIATOR More informationQuantity required : 1 |
|||||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
8 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
10 |
NUT BORGNE (M5) OEM PIAGGIO COMMON A LA RANGE-GU92787205 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/2/img/132662.jpg)
11 |
WASHER PLATE (5. 2X18X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95005304 More informationQuantity required : 1 |
|||||||||
