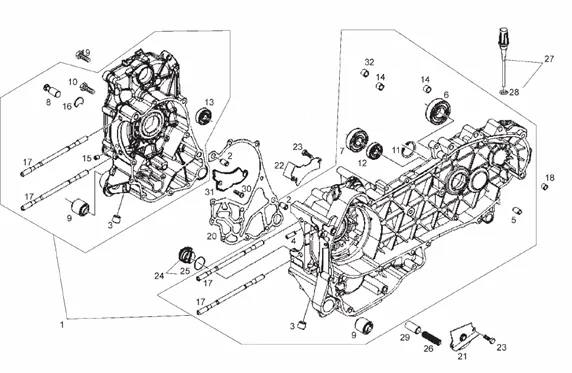

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008-2012 (EMEA) DERBI

Moteur : 35 CARTERS
Carters
Search
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002-

1
P2R reference P2R reference 73254
Maker reference Maker reference CM1485135002

COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002-

More information

Quantity required : 1

CM1485135001 - CARTER

1
P2R reference P2R reference 73251
Maker reference Maker reference CM1485135001

CM1485135001-CASING

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 1

CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433

3
P2R reference P2R reference 72673
Maker reference Maker reference B015433

CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433

More information

Quantity required : 1

BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034

4
P2R reference P2R reference 66654
Maker reference Maker reference 484034

BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

5
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BEARING (15X42X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-83018R

6
P2R reference P2R reference 68899
Maker reference Maker reference 83018R

BEARING (15X42X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-83018R

More information

Quantity required : 1

BEARING (20X47X14) DE REDUCTEUR (EX833701) OEM PIAGGIO COMMON A LA RANGE-1A024412R

7
P2R reference P2R reference 69082
Maker reference Maker reference 833701

BEARING (20X47X14) DE REDUCTEUR (EX833701) OEM PIAGGIO COMMON A LA RANGE-1A024412R

More information

Quantity required : 1

PIVOT SPRING DE STAND OEM PIAGGIO COMMON A LA RANGE-483785

8
P2R reference P2R reference 66643
Maker reference Maker reference 483785

PIVOT SPRING DE STAND OEM PIAGGIO COMMON A LA RANGE-483785

More information

Quantity required : 1

RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081

9
P2R reference P2R reference 66704
Maker reference Maker reference 486081

RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081

More information

Quantity required : 1

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

10
P2R reference P2R reference 72705
Maker reference Maker reference B016425

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

More information

Quantity required : 1

CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959

11
P2R reference P2R reference 72699
Maker reference Maker reference B015959

CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959

More information

Quantity required : 1

GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R

12
P2R reference P2R reference 68775
Maker reference Maker reference 82878R

GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R

More information

Quantity required : 1

OIL SEAL (20X30X7) VILEBREQUIN COTE IGNITION OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, GTS 2007 >/125 NEXUS 2007 >, RUNNER 4T 2005 >-82898R

13
P2R reference P2R reference 68805
Maker reference Maker reference 82898R

OIL SEAL (20X30X7) VILEBREQUIN COTE IGNITION OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, GTS 2007 >/125 NEXUS 2007 >, RUNNER 4T 2005 >-82898R

More information

Quantity required : 1

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

14
P2R reference P2R reference 72697
Maker reference Maker reference B015957

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

More information

Quantity required : 1

844582 - GICLEUR CARTER

15
P2R reference P2R reference 69323
Maker reference Maker reference 844582

844582-GICLEUR CASING

More information

Quantity required : 1

WASHER ARRET CASING ENGINE OEM PIAGGIO 125-200-250 2013 <-840489

16
P2R reference P2R reference 69149
Maker reference Maker reference 840489

WASHER ARRET CASING ENGINE OEM PIAGGIO 125-200-250 2013 <-840489

More information

Quantity required : 1

STUD DE CYLINDER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250-300 CC-1A003628R

17
P2R reference P2R reference 109025
Maker reference Maker reference 1A003628R

STUD DE CYLINDER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250-300 CC-1A003628R

More information

Quantity required : 1

PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916

18
P2R reference P2R reference 66142
Maker reference Maker reference 277916

PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916

More information

Quantity required : 1

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

19
P2R reference P2R reference 72705
Maker reference Maker reference B016425

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

More information

Quantity required : 1

GASKET OF CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-875111

20
P2R reference P2R reference 70573
Maker reference Maker reference 875111

GASKET OF CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-875111

More information

Quantity required : 1

483767 - PANNEAU INF!RIEURE

21
P2R reference P2R reference 66640
Maker reference Maker reference 483767

483767-PANEL INFERIEURE

More information

Quantity required : 1

485047 - PANNEAU SUP!RIEURE

22
P2R reference P2R reference 66670
Maker reference Maker reference 485047

485047-PANEL SUPERIEURE

More information

Quantity required : 1

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

23
P2R reference P2R reference 68890
Maker reference Maker reference 830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

More information

Quantity required : 1

BRACKET/INSERT OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-845861

24
P2R reference P2R reference 69371
Maker reference Maker reference 845861

BRACKET/INSERT OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-845861

More information

Quantity required : 1

O-RING INSERT DOOR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-431065

25
P2R reference P2R reference 66388
Maker reference Maker reference 431065

O-RING INSERT DOOR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-431065

More information

Quantity required : 1

SPRING CASING OIL OEM PIAGGIO COMMON A LA RANGE-485655

26
P2R reference P2R reference 66686
Maker reference Maker reference 485655

SPRING CASING OIL OEM PIAGGIO COMMON A LA RANGE-485655

More information

Quantity required : 1

JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130

27
P2R reference P2R reference 68991
Maker reference Maker reference 832130

JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130

More information

Quantity required : 1

GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085

28
P2R reference P2R reference 68643
Maker reference Maker reference 827085

GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085

More information

Quantity required : 1

VALVE OF PRESSURE OIL OEM PIAGGIO COMMON A LA RANGE-829661

29
P2R reference P2R reference 68864
Maker reference Maker reference 829661

VALVE OF PRESSURE OIL OEM PIAGGIO COMMON A LA RANGE-829661

More information

Quantity required : 1

1A003111 - VIS M5X10

30
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 1

828766 - PLAQUETTE

31
P2R reference P2R reference 158678
Maker reference Maker reference 828766

828766 - PLAQUETTE

More information

Quantity required : 1

BUSH DE CENTRAGE (5X8) OEM PIAGGIO COMMON A LA RANGE-484993

32
P2R reference P2R reference 66669
Maker reference Maker reference 484993

BUSH DE CENTRAGE (5X8) OEM PIAGGIO COMMON A LA RANGE-484993

More information

Quantity required : 1
