Vehicle Exploded View - MOTO-GUZZI AUDACE 1400 1400 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

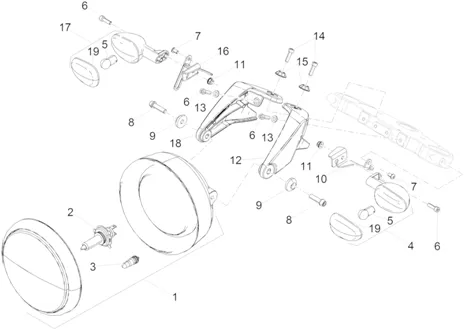

Instruments : 08.010 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/462/Audace_1400_2015_08.010.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/8/5/img/151185.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO MOTO-GUZZI 1400 AUDACE 2016 >, 750 V7 2017 >, 850 V9 2017 >-2D000386 More informationQuantity required : 1 |
||||||
1 |
2D000225 - PROJECTEUR UK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
4 |
2D000151-CLIGNOT. AV. GA./ARR. DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
|
6 |
GU98612320-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/0/img/69070.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-833569 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
8 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
9 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 2 |
||||||
|
10 |
2B001650-BRACKET GCHE CLIGNOT. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
12 |
2B001504-BRACKET HEADLAMP GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
13 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 2 |
||||||
|
14 |
GU98682320-SCREW M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.jpg)
15 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE MOTO-AP8150536 More informationQuantity required : 1 |
||||||
|
16 |
2B002093-BRACKET DTE CLIGNOT. More informationQuantity required : 1 |
||||||
|
17 |
2D000150-CLIGNOT. AV. DR./ARR. GA. More informationQuantity required : 1 |
||||||
|
18 |
2B001503-BRACKET HEADLAMP DRT. More informationQuantity required : 1 |
||||||
|
19 |
GU32753710 - VITRE CLIGNOTANT More informationQuantity required : 2 |
