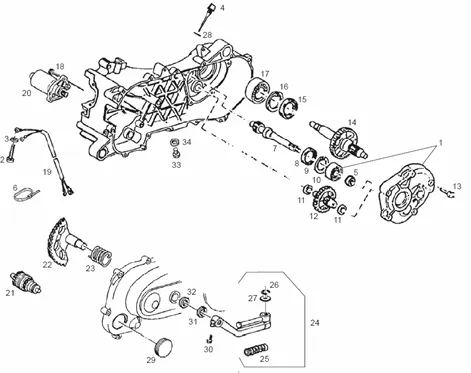

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 Two Chic 3ª ed E2 2005 (EMEA NAFTA)

	P2R reference	66739
	Maker reference	4874805

COVER DE REDUCTEUR OEM PIAGGIO 50 ZIP 4T, ZIP SP 2T, NRG, TYPHOON, VESPA LX 2T-4T, PRIMAVERA 2T, SPRINT 2T/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-H2O-4874805

	P2R reference	65449
	Maker reference	0186445

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

	P2R reference	65414
	Maker reference	0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

	P2R reference	68991
	Maker reference	832130

JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130

	P2R reference	66548
	Maker reference	478197

BUSH OF COMPENSATION ON SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-478197

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	66582
	Maker reference	4795715

SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO 50 ZIP 2000 >, TYPHOON 2000 > 2010, VESPA LX 2000 >, VESPA-S 2007 >, SPRINT 2014 >/APRILIA 50 MOJITO 2004 > 2010-4795715

	P2R reference	66590
	Maker reference	480066

OIL SEAL (17X28X5) SPINDLE PULLEY CLUTCH OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE/VESPA LX, SPRINT, PRIMAVERA-480066

	P2R reference	66604
	Maker reference	480953

CIRCLIPS SHAFT OEM PIAGGIO COMMON A LA RANGE-480953

	P2R reference	66473
	Maker reference	435363

BEARING (17X40X12) SPINDLE PULLEY RECEPTRICE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC-435363

	P2R reference	66196
	Maker reference	288639

WASHER PLATE (16X26X1) SHAFT INTERMEDIAIRE DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288639

	P2R reference	66557
	Maker reference	4784925

4784925-SPINDLE 13/46 C06-C16-C34-C381

	P2R reference	151716
	Maker reference	1A011120

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

	P2R reference	66740
	Maker reference	4874845

REAR WHEEL AXLE "PIAGGIO GENUINE PART" PIAGGIO 50 NRG 2000>, TYPHOON 2000>, VESPA PRIMAVERA 2013>/GILERA 50 STALKER 2000>, RUNNER 200>/APRILIA 50 MOJITO 2004>, SR H2O 2004> -4874845 -

	P2R reference	66558
	Maker reference	478498

OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498

	P2R reference	63825
	Maker reference	0066475

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

	P2R reference	66459
	Maker reference	434735

BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735

	P2R reference	65642
	Maker reference	0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

	P2R reference	67858
	Maker reference	639856

639856-WIRING HARNESS

	P2R reference	68531
	Maker reference	82530R

STARTER MOTOR OEM PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T-82530R

	P2R reference	66164
	Maker reference	82958R

LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82958R

	P2R reference	68967
	Maker reference	831458

SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458

	P2R reference	66223
	Maker reference	289495

SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495

	P2R reference	66168
	Maker reference	286214

KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214

	P2R reference	66169
	Maker reference	286217

PROTECTOR/RUBBER DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286217

	P2R reference	66185
	Maker reference	288041

CLIPS/CIRCLIPS KICK OEM PIAGGIO COMMON A LA RANGE-288041

	P2R reference	66170
	Maker reference	286219

286219-WASHER

	P2R reference	68643
	Maker reference	827085

GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085

	P2R reference	66646
	Maker reference	483859

CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	63814
	Maker reference	0064165

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

	P2R reference	66443
	Maker reference	433987

WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987

	P2R reference	66085
	Maker reference	269755

SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755

	P2R reference	66689
	Maker reference	485703

GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D
