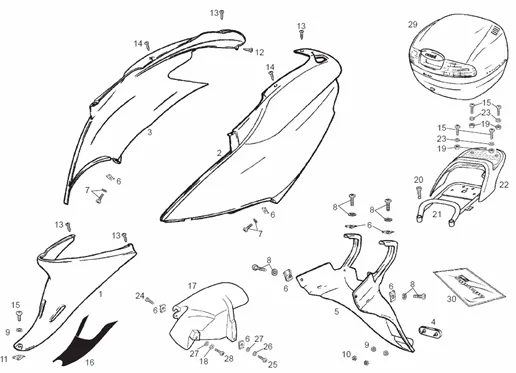

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 City E2 2003-2006 (EMEA)

	P2R reference	194342
	Maker reference	00G05916838

00G05916838 - CORPS INFERIEUR SELLE

	P2R reference	187369
	Maker reference	00G059168375

00G059168375 - CORPS INFERIEUR SELLE

	P2R reference	194343
	Maker reference	00G05916839

00G05916839 - CORPS INFERIEUR SELLE

	P2R reference	64145
	Maker reference	00G059168325

LOWER SADDLE BASE "PIAGGIO GENUINE PART" 50 DIESIS BLACK -00G059168325

	P2R reference	187367
	Maker reference	00G05918831

00G05918831 - CPO.INF.SILLIN AZL.GREG.ATL.06

	P2R reference	187371
	Maker reference	00G05917831

00G05917831 - CORPS INFERIEUR SELLE

	P2R reference	187379
	Maker reference	00G068133215

00G068133215 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194344
	Maker reference	00G068123285

00G068123285 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	187381
	Maker reference	00G06817323

00G06817323 - TAPA LATRL.IZ.AZL.GREG.ATL.06

	P2R reference	64157
	Maker reference	00G068123225

00G068123225 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194345
	Maker reference	00G06812329

00G06812329 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	187378
	Maker reference	00G068123275

00G068123275 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	187375
	Maker reference	00G015132375

00G015132375 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	187372
	Maker reference	00G015152375

00G015152375 - TAPA LATRL.DR.AZL.GREG.ATL.06

	P2R reference	64001
	Maker reference	00G015132325

00G015132325 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194346
	Maker reference	00G01513239

00G01513239 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	187373
	Maker reference	00G015142315

00G015142315 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194347
	Maker reference	00G015132385

00G015132385 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	71568
	Maker reference	AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

	P2R reference	187382
	Maker reference	00G01507862

00G01507862-SUPPL. DE GUARD-MUD REAR H.

	P2R reference	63995
	Maker reference	00G01507861

MUD FLAP REAR OEM APRILIA 50 ATLANTIS 2006 <-00G01507861

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63678
	Maker reference	000110325015

SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	187385
	Maker reference	00G04607501

00G04607501 - ADHESIF

	P2R reference	187384
	Maker reference	00G00704141

00G00704141 - GARDE-BOUE ARRIERE

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63576
	Maker reference	000000048305

00000004830-BOLT HEAD HEX. 8M125X30 D933

	P2R reference	63983
	Maker reference	00G01409191A

00G01409191A - ENSAMBLE PORTE-PAQUET AR.

	P2R reference
	Maker reference	00G01404242

COUVERCLE SUP. PORTE-BAGAGES

	P2R reference
	Maker reference	00G01404241

COUVERCLE SUP. PORTE-BAGAGES

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	67113
	Maker reference	575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

	P2R reference	63753
	Maker reference	000920635145

00092063514-SCREW

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference
	Maker reference	00G04900551

TOP CASE

	P2R reference
	Maker reference	00G04900441

TOP CASE

	P2R reference	194348
	Maker reference	00G05154651

00G05154651 - JEU ADHESIF
