Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 25km 2002 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

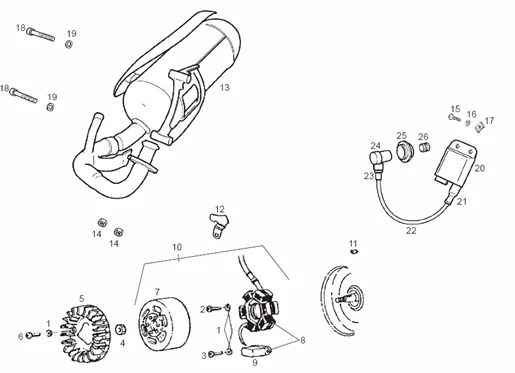

Moteur : 19 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1131/Atlantis_50_O2_25km_2002_(EMEA)_19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
1 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
2 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
4 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/4/img/68774.jpg)
5 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, LIBERTY, FLY/APRILIA 50 SR MOTARD 2T/VESPA 50 LX, SPRINT, PRIMAVERA 2T-828765 More informationQuantity required : 1 |
||||||
|
6 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/3/img/67303.jpg)
7 |
ROTOR (KOKUSAN) OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-584526 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/6/1/img/67861.jpg)
8 |
STATOR SCOOT OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-639865 More informationQuantity required : 1 |
||||||
9 |
498865-SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/1/4/img/67214.jpg)
10 |
IGNITION OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, PRIMAVERA 2T, SPRINT 2T, VESPA-S 2T/APRILIA 50 SR MOTARD 2T, MOJITO, SR H2O/GILERA 50 RUNNER, DNA, STALKER/-58136R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
11 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/5/img/68705.jpg)
12 |
GUIDE CABLE/SOUTIEN OEM PIAGGIO COMMON A LA RANGE-827847 More informationQuantity required : 1 |
||||||
|
13 |
00G03462601 - CTO.ESCAPE-SILEN. DIESIS E2 More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/4/img/63614.jpg)
15 |
SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
16 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
17 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
18 |
GU98680465-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
19 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
|
20 |
00G03310171 - BOBINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
21 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
22 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/2/img/68522.jpg)
23 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186 More informationQuantity required : 1 |
||||||
|
24 |
00G03302271-MANIFOLD DE SPARK PLUG More informationQuantity required : 1 |
||||||
|
25 |
00G03302791 - CAPUCHON More informationQuantity required : 1 |
||||||
|
26 |
00G03303791 - CAPUCHON More informationQuantity required : 1 |
