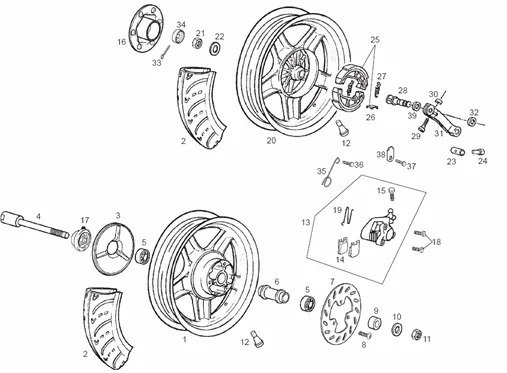

Vues éclatées : 8 ROUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1126/Atlantis_50_Bullet_3_ed_E2_2005_EMEA_NAFTA_8_20250925161640.png)
1 |
00G01209955 - JANTE DE DEVANT More informationQuantity required : 1 |
||||||
|
2 |
00G01212111 - PNEU 120/70-12 VEE RUBBER More informationQuantity required : 1 |
||||||
|
3 |
00F01201121 - FLASQUE ROUE AVANT DROITE More informationQuantity required : 1 |
||||||
|
4 |
00G01201271-SPINDLE FRONT WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
5 |
BEARING (12X32X10) DE REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX, RS 2006-847016 More informationQuantity required : 1 |
||||||
|
6 |
00G01200031 - ENTRETOISE DE ROULEMENT (EPAUL More informationQuantity required : 1 |
||||||
|
7 |
00G01202021-BRAKE DISC FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/9/6/img/64696.jpg)
8 |
SCREW REAR BRAKE DISC OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 >-00H02401282 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/3/4/3/img/187343.JPG)
9 |
SPACER REAR WHEEL COTE RIGHT OEM DERBI SENDA 50 R/GP 50/ATLANTIS 50-00H01301291 More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/3/img/63763.jpg)
11 |
NUT - FOR FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> ROUES A RAYONS -00232120032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
12 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
|
13 |
00G01202195 - ENSEMBLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/2/5/img/64125.jpg)
14 |
BRAKE PAD OEM DERBI 50 SENDA 2000 > 2010/GILERA SMT 2006/APRILIA 50 RS, RX, SX 2006 > 2010 (AJP)-00G04700141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
15 |
SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123 More informationQuantity required : 1 |
||||||
|
16 |
00G01301161 - COUVERCLE More informationQuantity required : 1 |
||||||
|
17 |
00G01608051-RENVOI DE WHEEL More informationQuantity required : 1 |
||||||
|
18 |
00006083000 - VIS A TETE HEXAGON.AVEC BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
19 |
SPRING BRAKE PAD OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 > 2010-00H01301831 More informationQuantity required : 1 |
||||||
|
20 |
00G01308353 - JANTE ARRIERE More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
|
22 |
00G01303191 - RONDELLE AXE ROUE AR. .ALEM More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
00G01100121 - PAPILLON REGLAGE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/4/img/68814.jpg)
25 |
BRAKE SHOE SET REAR OEM PIAGGIO 50 ZIP 2T AR, 50-125 VESPA LX AR, TYPHOON, NRG, LYBERTY/GILERA 50 STALKER, RUNNER (D. 105)-82907R More informationQuantity required : 1 |
||||||
|
26 |
266724-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
27 |
SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/6/img/72646.jpg)
28 |
CAME OF BRAKE REAR OEM PIAGGIO 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-B014502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/6/8/img/110768.jpg)
29 |
SCREW FLANGE TH (6X27) OEM PIAGGIO COMMON A LA RANGE-B011784 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/1/img/68791.jpg)
30 |
NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/0/img/69060.jpg)
31 |
LEVER DE CONTROL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-833428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/4/img/66124.jpg)
32 |
GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419 More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
34 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
34 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
35 |
00G01900101 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
36 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
|
37 |
00G05801101 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
38 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
39 |
242364-ELASTIC RING More informationQuantity required : 1 |
All the exploded views of this vehicle
-
