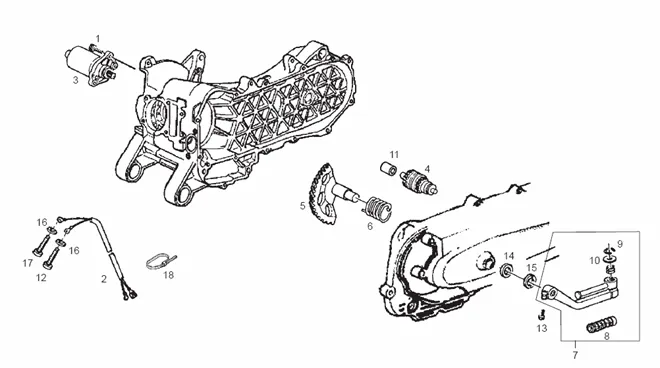

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2004-2006 (EMEA)

	P2R reference	65642
	Maker reference	0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

	P2R reference	72725
	Maker reference	B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

	P2R reference	187399
	Maker reference	969874

969874 - GROUPE CABLES

	P2R reference	70968
	Maker reference	969347

969347-GROUP CABLES

	P2R reference	70958
	Maker reference	96928R

STARTER MOTOR OEM PIAGGIO 100 ZIP 4T 2006 >, LIBERTY 4T 2011 > 2014, FLY 4T 2006 > 2014/GILERA 180 RUNNER 2T 1998 > 2005/APRILIA 100 SCARABEO 4T 2001 > 2012-96928R

	P2R reference	70939
	Maker reference	96921R

STARTER MOTOR SCOOT OEM PIAGGIO 50 FLY 4T 2005 >, LIBERTY 4T2005 >, NRG PURE-JET, ZIP 4T 2000 >/GILERA 50 RUNNER PURE-JET/VESPA LX 4T2005 >, PRIMAVERA 4T2013 >, VESPA S 4T 2008 >-96921R

	P2R reference	66215
	Maker reference	289202

LANCEUR/RENVOI DE STARTER MOTOR SCOOT OEM PIAGGIO 50 4T FLY 2005 >, LIBERTY 2005 >, VESPA LX 2005 >, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, NRG PURE-JET 2005 >, ZIP 2000 >/APRILIA 50 RS 2006 >-289202

	P2R reference	66407
	Maker reference	431321

LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 100 ZIP, FLY, LIBERTY 4T 2006 >, 125 TYPHOON 2T, HEXAGON 2T, SKIPPER 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005/APRILIA 100 SCARABEO 4T 2001 >-431321

	P2R reference	68967
	Maker reference	831458

SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458

	P2R reference	66223
	Maker reference	289495

SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495

	P2R reference	66168
	Maker reference	286214

KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214

	P2R reference	66169
	Maker reference	286217

PROTECTOR/RUBBER DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286217

	P2R reference	66185
	Maker reference	288041

CLIPS/CIRCLIPS KICK OEM PIAGGIO COMMON A LA RANGE-288041

	P2R reference	66170
	Maker reference	286219

286219-WASHER

	P2R reference	66417
	Maker reference	431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

	P2R reference	65449
	Maker reference	0186445

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	66443
	Maker reference	433987

WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987

	P2R reference	63814
	Maker reference	0064165

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

	P2R reference	65414
	Maker reference	0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72723
	Maker reference	434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	65449
	Maker reference	0186445

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531
