Vehicle Exploded View - APRILIA SR 150 Aprilia 4T-3V (EMEA-LATAM) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

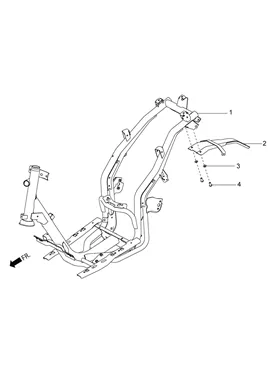

Cadre : 02.01 CHÂSSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/931/Aprilia_SR_150_4T-3V_(EMEA-LATAM)_2018_02.01.png)
1 |
SP1B007992-CADRE WITH PIECES INTERNES More informationQuantity required : 1 |
||||||
|
1 |
SP1B007992-CADRE WITH PIECES INTERNES More informationQuantity required : 1 |
||||||
|
1 |
SP1B004395-FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/0/7/img/152807.jpg)
2 |
FRAME DE BRACKET DE PLATE OEM PIAGGIO 50 TYPHOON, SR MOTARD 2018 >-SP1B003628 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
3 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
4 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 2 |
