Vehicle Exploded View - APRILIA AMICO 50 1994-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

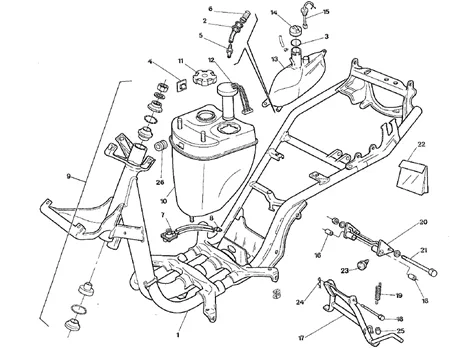

Chassis : 15 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/234/Amico_50_1994-1994_15.PNG)
1 |
CADRE PEINT (PL) |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
2 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
|
3 |
AP8120355 - JOINT BOUCHON HUILE More informationQuantity required : 1 |
||||||
|
4 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
5 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
6 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
|
7 |
Robinet essence à dépress.; |
||||||
|
8 |
FILTRE ESSENCE (=8101999 |
||||||
|
9 |
Série direction complète |
||||||
|
10 |
AP8230883 - RESERVOIR (PL) More informationQuantity required : 1 |
||||||
|
11 |
Bouchon réservoir essence |
||||||
|
12 |
AP8212958-SONDE NIVEAU FUEL More informationQuantity required : 1 |
||||||
|
13 |
RESERVOIR D'HUILE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/0/4/img/46604.jpg)
14 |
AP8120354 - BOUCHON More informationQuantity required : 1 |
||||||
|
15 |
AP8112686 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/0/img/72280.jpg)
16 |
SILENTBLOC FOR EXHAUST/OR SUSPENSION ARM "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO/APRILIA 125 LEONARDO, 50 SCARABEO 2 STROKE -AP8220346- More informationQuantity required : 2 |
||||||
|
17 |
Béquille; |
||||||
|
18 |
Axe de béquille |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
19 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 1 |
||||||
|
20 |
Biellette fixation moteur; |
||||||
|
21 |
Pivot support moteur |
||||||
|
22 |
TROUSSE OUTILS COMPLETE |
||||||
|
23 |
Tampon fdc biellette |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/3/img/72133.JPG)
24 |
GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431 More informationQuantity required : 1 |
||||||
|
25 |
AP8220239-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
26 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 1 |
