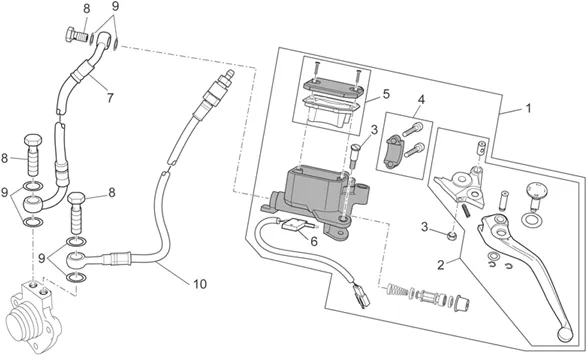

Chassis : 33.24 COMMANDE EMBRAYAGE CPL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_33.24.PNG)
1 |
MAITRE CYLINDER CLUTCH OEM PIAGGIO MOTO-GUZZI BELLAGIO, BREVA, GRISO, NORGE, STELVIO/APRILIA 1000 CAPONORD, 1000 FUTURA-978607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/7/2/img/100872.jpg)
2 |
LEVER D'EMBRAYAGE OEM PIAGGIO MOTO-GUZZI 850-1200 NORGE, BREVA, GRISO, 940 BELLAGIO, 1200 SPORT, STELVIO-981046 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
3 |
SCREW OF MOUNTING LEVER BRAKE/CLUTCH OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA-2B003040 More informationQuantity required : 1 |
||||||
|
3 |
SCREW OF MOUNTING LEVER BRAKE/CLUTCH OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA-2B003040 More informationQuantity required : 1 |
||||||
|
4 |
AP8113993-CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
AP8113997-CAP TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/9/img/71339.jpg)
6 |
MINIRUPTEUR OEM PIAGGIO MOTO-GUZZI GRISO, NORGE, BREVA, STELVIO/APRILIA 1000 CAPONORD-AP8113998 More informationQuantity required : 1 |
||||||
|
7 |
978911-TUBO COMANDO FRIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/2/img/71652.jpg)
8 |
SCREW/FITTING BANJO HOSE OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8133594 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
|
10 |
FITTING CONTROL CLUTCH OEM PIAGGIO MOTO-GUZZI NORGE, STELVIO, BELLAGIO, BREVA, GRISO-GU05606630 More informationQuantity required : 1 |
