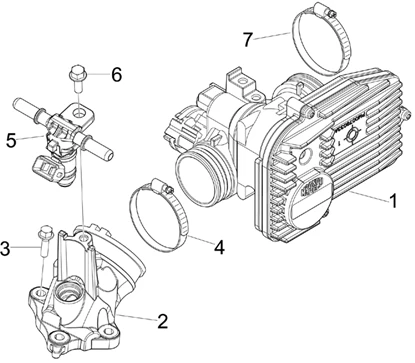

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1268/MP3_300_ie_E4_LT_BUSINESS_SPORT__2016_-2018_(EMEA)_01.36.png)
1 |
CM2755097 - THROTTLE BODY WITH E.C.U. (MIU) Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
BOITIER PAPILLON AVEC CENTRALE ELECTRONIQUE ORIGINE PIAGGIO 300 MP3 AVEC ABS 2016>2018 -CM2755047 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/8/img/70588.jpg)
2 |
RACCORD/PIPE ADMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC MOTEUR INJECTION -875694 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
3 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
4 |
COLLIER SERRAGE TUBE 32-50 ORIGINE PIAGGIO COMMUN A LA GAMME -1A000833 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/7/2/img/70472.jpg)
5 |
INJECTEUR ORIGINE PIAGGIO 250-300 MP3, BEVERLY, X7, 125 VESPA LX, VESPA-S,X7, 250 X-EVO/GILERA 125-300 NEXUS/APRILIA 300 SPORT-CITY, ATLANTIC, SCARABEO, 125-300 SR-MAX -8732885 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1A003001 - VIS PARKER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.jpg)
7 |
COLLIER 58-62.5 ORIGINE PIAGGIO COMMUN A LA GAMME -260918 Plus d'informationsQuantité requise : 1 |
