Eclatés de véhicule - PIAGGIO MP3 300 HPE - 300 HPE Sport E4 ABS -2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

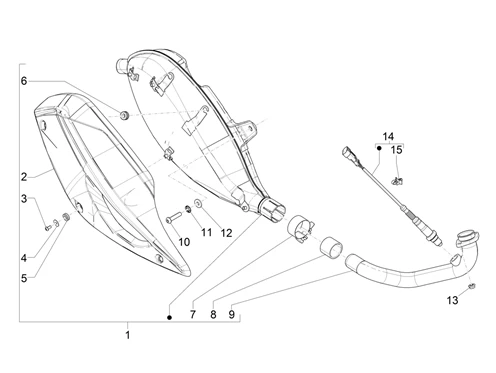

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/845/MP3_300_HPE_-_300_HPE_Sport_E4_ABS_-2019_(EMEA)_01.42.png)
1 |
1A0161085- POT D'ECHAPPEMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/3/6/img/146236.jpg)
2 |
PROTECTION/TOLE DE POT ECHAPPEMENT ORIGINE PIAGGIO 125-300 YOURBAN 2012> -1A005301 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
4 |
RONDELLE PLATE (6X18) ORIGINE PIAGGIO COMMUN A LA GAMME -841821 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
5 |
PASSE CABLE (8X10X16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -487665 Plus d'informationsQuantité requise : 3 |
||||||
|
6 |
B013302 - PASSECABLES Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/3/img/69333.jpg)
7 |
COLLIER SERRAGE TUBE ECHAPPEMENT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME 125-250-300 -8449404 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
8 |
JOINT GRAPHITE SILENCIEUX ORIGINE PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B014892 - COUDE ECHAPPEMENT * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
10 |
VIS TORX (8X30) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -599208 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
11 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/7/0/img/69570.jpg)
12 |
RONDELLE PLATE (8X19,3X2,5) ORIGINE PIAGGIO COMMUN A LA GAMME -848452 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
13 |
ECROU ECHAPPEMENT SUR CULASSE MAXISCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC -436947 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
SONDE LAMDA ORIGINE PIAGGIO 300 MP3 HPE 2019>, VESPA GTS 2019> -1A0098965 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
640879 - COLLIER Plus d'informationsQuantité requise : 1 |
