Eclatés de véhicule - PIAGGIO MP3 300 HPE - 300 HPE Sport E4 ABS -2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

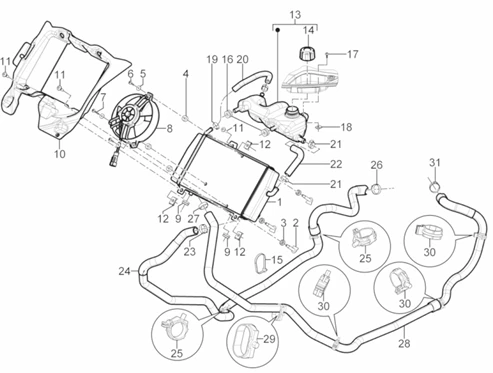

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/845/MP3_300_HPE_-_300_HPE_Sport_E4_ABS_-2019_(EMEA)_02.55.png)
1 |
RADIATEUR EAU ORIGINE PIAGGIO 300 MP3 HPE 2019> -1B005816 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/6/img/71466.jpg)
2 |
TIGE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121464 Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
AP8221218 - DOUILLE GARDE-BOUE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/8/7/img/71587.jpg)
4 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8125848 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
5 |
RONDELLE PLATE (4.5X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016670 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
6 |
VIS AUTOTARAUDEUSE (3X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -258146 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
7 |
VIS CARENAGE/CARROSSERIE ORIGINE PIGGIO COMMUN A LA GAMME -259577 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/9/8/img/158198.jpg)
8 |
VENTILATEUR ORIGINE PIAGGIO 300 MP3 HPE 2019> -1D002637 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
9 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCCOOTER -258904 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/9/9/img/158199.jpg)
10 |
CONVOYEUR AIR ORIGINE PIAGGIO 300 MP3 HPE 2019> -1B006066 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
11 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/0/0/img/158200.jpg)
13 |
RESERVOIR LIQUIDE REFROIDISSEMENT ORIGINE PIAGGIO 300 MP3 HPE 2019> -1B005886 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
14 |
BOUCHON VASE EXPANSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -623673 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
15 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
16 |
PASSE-CABLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -576565 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
17 |
VIS TORX (5X16) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -880285 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
18 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
19 |
COLLIER (16.2MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001903 Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
657337 - TUYAU DE PURGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
21 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904 Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
CM007023 - TUYAU RETOUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
23 |
COLLIER DURITE REFROIDISSEMENT OU FILTRE A AIR (25.6MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001907 Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
1B006087 - TUBE DE JONCTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
25 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMUN A LA GAMME -CM006903 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
26 |
COLLIER DURITE REFROIDISSEMENT (30MM) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -CM001922 Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
COLLIER DURITE REFROIDISSEMENT OU FILTRE A AIR (25.6MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001907 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/0/2/9/img/199029.jpg)
28 |
DURITE REFROIDISSEMENT (DE LA CULASSE AU RADIATEUR) ORIGINE PIAGGIO 300 MP3 HPE 2019> -1B008437R Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
DURITE REFROIDISSEMENT (DE LA CULASSE AU RADIATEUR) ORIGINE PIAGGIO 300 MP3 HPE 2019> -1B008437R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
29 |
COLLIER PINCE RETENUE DURITE ORIGINE PIAGGIO COMMUN A LA GAMME -CM006902 Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMUN A LA GAMME -CM006903 Plus d'informationsQuantité requise : 3 |
||||||
|
31 |
675874 - COLLIER SERR. TUBE Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
COLLIER DURITE REFROIDISSEMENT (30MM) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -CM001922 Plus d'informationsQuantité requise : 1 |
